About this Help

Welcome to Kaspersky Security 9.0 for SharePoint Server Maintenance Release 2 Help!

This Help is intended for:

• administrators;
• to security officers.

This Help serves the following purposes:

• provides quickly searchable information to answer questions relating to the operation of the application;
• references additional sources of information about the application and describes ways to get technical support.

Limitations imposed when viewing Help

When handling server-based operating systems, some of the Help elements may be displayed improperly. We recommend that you add https://help.kaspersky.com to the list of trusted websites in your web browser.

What's new

Kaspersky Security now provides the following features:

• Configuring text templates for notifications about application operation events (for the administrator)
• Changing the set of any Kaspersky Lab category (for the data security officer)
• Calling Help in online mode

The Management Console GUI has also been improved.

Sources of information about the application

This section lists the sources of information about the application.

You can select the most convenient source, depending on the urgency or importance of your question.

Data sources for independent searching

You can use the following sources to search for information about Kaspersky Security on your own:

• Kaspersky Security page on the Kaspersky Lab website
• Kaspersky Security page on the Technical Support website (Knowledge Base)
• Online help
• Documentation

An Internet connection is required to use online information sources.

If you cannot find the solution to an issue on your own, we recommend that you contact Technical Support at Kaspersky Lab.

Kaspersky Security page on the Kaspersky Lab website

On the Kaspersky Security page, you can view general information about the application, its functions and features.

The Kaspersky Security page contains a link to eStore. There you can purchase the application or renew your license.

Kaspersky Security page in the Knowledge Base

Knowledge Base is a section on the Technical Support website.

On the Kaspersky Security page in the Knowledge Base, you can read articles that provide useful information, recommendations, and answers to frequently asked questions on how to purchase, install, and use the application.

Knowledge Base articles can answer questions relating to not only to Kaspersky Security but also to other Kaspersky Lab applications. Knowledge Base articles can also include Technical Support news.

Online help

The application includes full help and context help files.

Context help provides information about Kaspersky Security windows: descriptions of Kaspersky Security settings and links to descriptions of tasks that use such settings.

Full help provides information on how to configure and use Kaspersky Security.

Help files can be included in the application or published online on a Kaspersky Lab web resource. If help files are published online, they open in a web browser window when you try to access them. An Internet connection is required to view online help.

Documentation

Application documentation consists of the files of application guides.

• The Administrator's Guide provides instructions on:
• Preparing Kaspersky Security for installation, installing and activating the application
• Configuring and using Kaspersky Security

The Security Officer's Guide provides information about standard tasks that a user can perform through the application, with regard for rights granted in Kaspersky Security.

The Help Guide provides the descriptions of Kaspersky Security features and settings. The sections of the Help Guide are sorted in alphabetical order or grouped by topic.

Discussing Kaspersky Lab applications on the forum

If your issue does not require an immediate solution, you can discuss it with Kaspersky Lab specialists and other users on our Forum.

In this forum you can view existing topics, leave your comments, create new topics.

To administrator

This Help section is intended for specialists who perform Kaspersky Security installation and administration, as well as for those who provide technical support to organizations that use Kaspersky Security.

Information in this section is arranged in accordance with the interface of Kaspersky Security Management Console.

Kaspersky Security 9.0 for SharePoint Server

Kaspersky Security for SharePoint Server is an application designed for protection of servers running Microsoft SharePoint Server against malicious objects and unwanted content.

Kaspersky Security can perform the following operations:

• Scan on demand various documents stored on the SharePoint servers checking them for the presence of harmful objects and unwanted content.
• Perform on-access scan of documents placed on SharePoint servers. Kaspersky Security scans documents checking them for the presence of harmful objects or unwanted content when users attempt to upload a document to a SharePoint server or download it from a server to a computer.
• Scan on demand files attached to items within SharePoint lists checking them for the presence of unwanted content.
• Select areas of the SharePoint structure to scan on demand, and exclude certain areas from the scan to reduce the load on the server.
• Configure the rules for processing of the documents in which harmful objects or unwanted content are detected.
• Save copies of the documents in Backup before disinfecting or deleting them.
• Generate reports about the results of document scanning. Reports can be generated automatically in accordance with the defined schedule or upon request.

About Kaspersky Security 9.0 for SharePoint Server

Kaspersky Security 9.0 for SharePoint Server Maintenance Release 2 (hereinafter referred to as "the application") is designed to protect the SharePoint platform against viruses and other malware. The application lets you scan the content of websites and wiki blogs for unwanted content, protect personal data of users, and confidential corporate data on SharePoint websites against data leaks.

Kaspersky Security features:

• Scan files for malware and unwanted content in real time
• Block files containing malware or unwanted content at the attempt to upload them to SharePoint;
• Monitor the content of blogs and wiki pages on SharePoint
• Form custom criteria of unwanted content
• Scan web addresses against lists of malicious or phishing links
• Receive anti-virus database updates from Kaspersky Lab servers during the license validity period
• Use file and link reputation data from Kaspersky Security Network services
• Scan files on SharePoint in background mode
• Configure the schedule and run mode of SharePoint file scan tasks
• Move copies of infected objects to Backup before disinfecting or deleting them
• Automatically or manually generate application reports and send them to email addresses
• Define the settings for maintaining the application event logs
• Automatically send infected file notifications to email addresses
• Use the role-based access control system for accessing various application functions
• Create data categories to protect information that is valuable to the company;
• Scan file content for data of specific categories at the time when users upload files to SharePoint sites.

Role-based access restriction in Kaspersky Security for SharePoint Server

Kaspersky Security for SharePoint Server supports the roles of Administrator and Security Officer. Roles restrict users' rights of access to the application's features. The Administrator and the Security Officer use different features of the application to achieve their respective goals. The functions of these two roles do not overlap.

Two different sets of nodes are displayed Kaspersky Security Management Console for the Administrator and for the Security Officer. The table below lists the main tasks for the Administrator and for the Security Officer, as well as nodes displayed in Management Console for these two roles.

Main tasks of Kaspersky Security roles

Roles are assigned by adding a user account to one of the following Active Directory groups:

• KSH Administrators (Administrator);
• KSH Security Officers (Security Officer).

You can create those groups manually before installing Kaspersky Security. If the account under which Kaspersky Security is being installed, has the rights to create groups in Active Directory, groups will be created automatically when installing the application.

A user can combine the roles of Administrator and Security Officer. In this case, the user will have access to all of the application's features. If a user needs to combine both roles and use all of the features of Kaspersky Security, the corresponding account should be added to both groups in Active Directory. The account of the user who has installed the application will be added to both groups in Active Directory. Role assignment with the KSH Administrators and KSH Security Officers groups apply to all servers in a SharePoint farm.

Distribution kit

Kaspersky Security 9.0 for SharePoint Server is supplied as part of Kaspersky Security for Collaboration Servers and Kaspersky Total Security.

You can buy the application through partner companies or Kaspersky Lab eStore.

If the application is purchased through an online store, it is downloaded from the store's website. Information needed to active the application, including the key file, will be emailed to you after you purchase a license.

Carefully review the End User License Agreement between installing and using the application.

Hardware and software requirements

Kaspersky Security has the following hardware and software requirements:

Hardware requirements

If installing Management Console and Security Server:

• For SharePoint Server 2010:
  • 64-bit quad-core processor
  • 4 GB RAM
  • 229 MB of available disk space
• For SharePoint Server 2013:
  • 64-bit quad-core processor
  • 8 GB RAM
  • 229 MB of available disk space
• For SharePoint Server 2016:
  • 64-bit quad-core processor
  • 8 GB RAM
  • 229 MB of available disk space

If installing only Management Console:

• Minimum 400 MHz processor (1 GHz recommended)
• 256 MB RAM
• 176 MB of available disk space

Depending upon the application settings and its mode of operation, more disk space may be required for Backup and other service folders. DLP Module additionally requires at least 4 GB free disk space. While DLP Module is running, files and memory dumps are generated, which may require a volume of memory that would significantly exceed 4 GB.

Software requirements

Supported versions of SharePoint servers:

• Microsoft SharePoint Server 2010;
• Microsoft SharePoint Server 2013;
• Microsoft SharePoint Server 2016.

Supported operating systems:

If installing Management Console and Security Server:

• For SharePoint Server 2010:
  • Windows Server 2008 R2 Service Pack 1;
  • Windows Server 2012 R2
• For SharePoint Server 2013:
  • Windows Server 2008 R2 x64 Service Pack 2
  • Windows Server 2012 x64;
  • Windows Server 2012 R2
• For SharePoint Server 2016:
  • Windows Server 2012 R2

If installing only Management Console:

• Windows Server 2008 R2;
• Windows Server 2012 x64;
• Windows Server 2012 R2;
• Windows 7 Professional Service Pack 1;
• Windows 7 Professional x64 Service Pack 1
• Windows 7 Enterprise Service Pack 1
• Windows 7 Enterprise x64 Service Pack 1
• Windows 7 Ultimate Service Pack 1
• Windows 7 Ultimate x 64 Service Pack 1
• Windows 8
• Windows 8 x64
• Windows 8.1;
• Windows 10.

Required components to install the application:

• Supported version of Microsoft SharePoint Server

  Standalone installation of Administration Console does not require Microsoft SharePoint Server

• Microsoft .NET Framework 3.5 Service Pack 1
• Microsoft Management Console 3.0

Application architecture

Kaspersky Security 9.0 for SharePoint Server includes the following components:

• Management Console. This is a snap-in for Microsoft Management Console (hereinafter referred to as MMC). This component is designed for interaction with the application through an interface.

  You can install Management Console separately from other application components. If you need to manage other components of the application, you can add computers with installed components to Management Console. If several administrators work concurrently, Management Console can be installed on each administrator's computer.

• Security Server. This component is designed for anti-virus protection of a SharePoint server (or server farm) and for scanning files, blogs, and wiki pages for unwanted content. Security Server is responsible for real-time protection, updating the application databases, background scanning of SharePoint servers, relaying data to Kaspersky Security Network services, and activating the application.
• DLP Module. This component is designed to protect SharePoint data against leaks. The DLP Module is part of Security Server and can be installed on a SharePoint server only together with Security Server. A separate key is required to use the DLP Module.

Some Kaspersky Security settings are stored in the memory of third-party software (Active Directory and Microsoft SQL Server). Kaspersky Security is unable to guarantee security of such data. To prevent unauthorized changes to these settings, you have to ensure their security on your own.

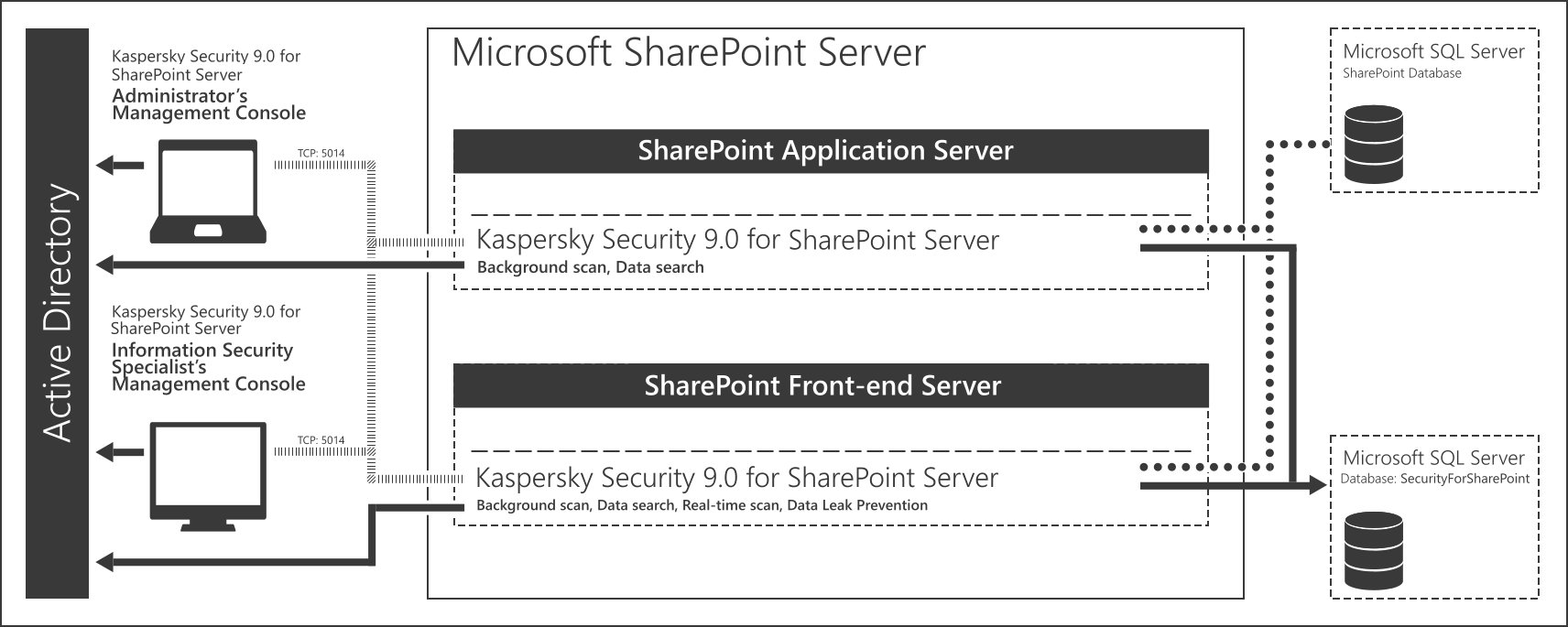

The figure below shows an example of application deployment within the Microsoft SharePoint Server structure.

Kaspersky Security 9.0 for SharePoint Server deployment example

About information stored in the SQL database

The application saves the following information to the SQL database:

• Details of Security Server's operation:
  • The component's configuration
  • The component's operation statistics
  • Ready reports
  • Backup copies of documents.
• Details of DLP Module's operation:
  • The component's configuration
  • Information about user categories
  • The component's operation statistics
  • Ready reports
  • Information about incidents (including files associated with incidents)
  • Information about the progress of scan tasks.

Files associated with incidents and backup copies of documents are not encrypted. For security reasons (for example, to prevent unauthorized access or possible data leaks), you are advised to protect files in the SQL database on your own.

Information about incidents may increase the size of the database significantly. An information security specialist can archive incidents. This procedure allows minimizing the volume of data stored in the SQL database.

Access rights for managing Kaspersky Security

Kaspersky Security installation and management are based on the access rights granted to the account under which all actions on the application are performed. The rights required for Kaspersky Security installation and management are listed below.

Rights to manage Kaspersky Security

The account under which Kaspersky Security services will be run, must have the following set of rights:

• Local administrator rights on the SharePoint servers on which Kaspersky Security is to be installed
• Rights to modify the SharePoint configuration
• Rights to website collections that need to be protected with Kaspersky Security

You can grant rights to modify the SharePoint configuration and rights to website collections that need to be protected, using one of the two methods: manually or with a script.

Rights for installing Kaspersky Security

The account under which you run the application installation, must have the following set of rights:

• Local administrator rights on the computer on which Kaspersky Security is to be installed
• Rights for creating groups in Active Directory

  Without the rights for creating groups in Active Directory, the application cannot create role-based control groups automatically. If these rights have not been granted to the account, you have to create role-based control groups manually.

• using rights for SQL database preparation.

Rights for SQL database preparation

Kaspersky Security uses the SQL database to store Backup configuration files and data. You can provide the account selected for SQL database preparation with access to the database using one of the following methods:

• Assign the account the sysadmin role on the SQL server (on which a database for Kaspersky Security management already exists or is to be created).

  Users with the sysadmin role can perform any actions on the SQL server. If the account has been assigned the sysadmin role, the database can be created automatically during the application installation.

• Assign the account the db_owner role for a database that was created manually.

  If the database was created manually before the application installation, you will need to specify this database in the SQL server connection settings during the application installation. Users with the db_owner role can perform any actions on the database.

The account intended for SQL database creation and preparation will be used only when the Application Installation Wizard is running. It will not be used after installation of Kaspersky Security is complete.

Rights for managing Kaspersky Security

The user account under which Kaspersky Security will be manged must have read and write rights to <application installation folder>\Configurations. By default, the account that has been granted the local administrator rights on the computer, has the read/write access in this folder.

Also, the account under which you run Management Console must be added to the Active Directory group, which corresponds to the user role.

Kaspersky Security cannot be managed without these rights.

How to grant rights to website collections and modify the SharePoint configuration

To make Kaspersky Security operable, the user account under which Kaspersky Security will be run must be granted rights to modify the SharePoint configuration and rights to website collections that need to be protected. Listed below are the methods of granting those rights to a user account.

Granting rights manually

You can grant rights manually through Microsoft SQL Server Management Studio or Microsoft SQL Server Management Studio Express. The user account must be assigned the following:

• db_owner role for the SQL database, which contains the SharePoint configuration (by default, SharePoint_Config database)
• db_owner role for the SQL database, which contains the SharePoint configuration contents (by default, SharePoint_AdminContent database)
• SiteCollection Administrator rights to each website collection that needs to be protected These rights can be granted (for example, through the SharePoint admin center or SharePoint command console).
• db_owner role for each SQL database with a website collection that needs to be protected

Granting rights using a script

Using scripts allows you to automate the process of granting rights to a user account. You must run the following scripts using Windows PowerShell:

• Script for granting rights to modify the SharePoint configuration

  Add-SPShellAdmin -UserName <domain\KSH_User>

• Script for granting rights to each website collection that needs to be protected

  $wa = Get-SPWebApplication <http://WebApp.domain.com>

  $wa.GrantAccessToProcessIdentity(<domain\KSH_User>)

  $wa.Update()

  Where http://WebApp.domain.com is the web address or GUID of the web application on the SharePoint portal, and <domain\KSH_User> is the name of the account created for managing Kaspersky Security.

  You have to run this script for each web application on which SharePoint website collections are located.

Creating an SQL database manually

To create an SQL database manually, run the following SQL script:

CREATE DATABASE [<database name>]

ON PRIMARY

(

NAME = [<name of database>_

<logical name of the primary data file> ],

FILENAME = '<full path to the primary data file>'

),

FILEGROUP [<name of database>_BACKUP_DATA_FILE_GROUP]

(

NAME = [<name of database>_BACKUP_DATA_FILE_GROUP],

FILENAME = 'full path to the secondary data file'

)

To manage the database that has been created manually, you must grant the relevant access rights to the account intended for database preparation.

Preparing to install

Before preparing your computer for Kaspersky Security installation, make sure that the hardware and software on your computer meet the requirements for the Security Server and Administration Console.

To prepare your computer for Kaspersky Security installation:

1. Install all of the components required for the Kaspersky Security operation (if they are still missing):
   • Microsoft .NET Framework 3.5 SP1.
   • Microsoft Management Console 3.0 (MMC 3.0).

   You can download these components by clicking the link in the welcome window of the Kaspersky Security installation package, and then install them. The computer must be restarted after Microsoft .NET Framework 3.5 SP1 installation. Continuing the application installation without restart may cause failures in the Kaspersky Security operation.

   If Microsoft SharePoint Server is not installed on the computer, the application prompts you to install Management Console alone. In this case, the Security Server and the DLP Module cannot be installed on this computer.

2. Create an account to run Kaspersky Security services and grant it all the relevant rights.
3. Create an account under which Kaspersky Security installation will be run, and grant it all the relevant rights.

   If no access rights for the SharePoint_Config and SharePoint_AdminContent_<GUID> databases are provided, the anti-virus settings of the SharePoint server cannot be defined. At the final stage of the installation, when the files are being copied and the components registered, an error message appears. When the error message appears, click the Ignore button in the dialog box and, when the installation finishes, reboot the ISS server using the command iisreset / restart.

4. If necessary, create a database manually to store Backup configuration files and data.

   You can also use the databases created during the previous installation of Kaspersky Security. In this case, no additional actions are required.

   If the account intended to handle the SQL database has been assigned the sysadmin role on the SQL server on which the database is to be created, you can skip this step. If these rights have been granted, the database will be created by the Application Installation Wizard automatically.

   Kaspersky Security does not provide channel encryption during data transmission between the server and the SQL database. To secure your data, manually encrypt data to be transmitted over communication channels.

5. Create an account for SQL database preparation and grant it all the relevant rights.
6. In Active Directory, create groups for role-based access to Kaspersky Security features. These groups can be created in any of the organization's domains. The group type is "Universal". Group names:
   • KSH Administrators
   • KSH Security Officers

   If the account under which Kaspersky Security is to be installed, has the rights to create groups in Active Directory, you can skip this step. The groups will be created automatically during the application installation.

7. Create an account for managing Kaspersky Security and grant it all the relevant rights.

   Kaspersky Security cannot be managed without those rights.

   Management Console connects to the Security Server over TCP using port 5014. The port must remain open to allow management of the Security Server.

Upon finishing your installation preparations, you can proceed to Kaspersky Security installation.

Page top

Features of the application installation on a SharePoint farm

When Kaspersky Security is installed on a SharePoint farm, the application needs to be successively installed on all the SharePoint farm servers. When the installation completes on the first SharePoint farm server, you can use the Configuration Wizard to perform the initial setup of the application. The installation of Kaspersky Security on the other SharePoint farm servers uses the initial settings configured during installation of the application on the first SharePoint farm server.

The process of Kaspersky Security installation is accompanied by the Setup Wizard. The Setup Wizard will prompt you to configure the installation settings. Follow the Wizard's instructions.

Upgrading from a previous version of the application

This section describes the procedure for upgrading from the previous version of the application. This section includes upgrade instructions and describes the specifics of upgrading Kaspersky Security on a standalone SharePoint server and on a SharePoint server farm.

About Kaspersky Security upgrades

Kaspersky Security 9.0 Maintenance Release 2 (build 9.1.45175) can be upgraded to version 9.0 Maintenance Release 2. Upgrades of earlier application versions are not supported. To run the application upgrade, the account under which Kaspersky Security is to be upgraded must have rights to handle SQL databases.

During the application upgrade process, Anti-Virus databases are rolled back automatically. For the safety of your computer, you are advised to start the database update after completing the application upgrade. Application functionality can change after update.

Before upgrading Security Server for Kaspersky Security, you are recommended to complete all on-demand scan, report and database update tasks running on the server. Otherwise, these tasks are forcibly stopped prior to completion.

The following upgrade configurations of Kaspersky Security are available:

• Security Server and Management Console installed on a standalone SharePoint server
• Security Server and Management Console installed on a SharePoint server in a SharePoint farm environment.
• Management Console only

During the upgrade of a separately installed Management Console, tasks running on Security Server are not suspended. SharePoint server protection remains enabled.

When the application upgrade is started, the I have read the KSN Statement and accept all of the conditions therein check box is cleared automatically in Kaspersky Security settings. When the upgrade is complete, you can accept the KSN Statement and define the settings of KSN usage Other Kaspersky Security settings are transferred to the new version unchanged.

When upgrading Kaspersky Security 9.0 Maintenance Release 1 to version 9.0 Maintenance Release 2, failures may occur in the operation of the SharePoint Timer service. Errors in the Windows Event Log will indicate an operation failure. Text of error messages will start with the name of the SharePoint.Integration.Vsapi.Com.dll module. In this case, you will have to restart the SharePoint Timer service. The SharePoint Timer service must be restarted on all the servers on which Kaspersky Security is installed.

Tips for upgrading Kaspersky Security on a SharePoint farm

When upgrading Kaspersky Security on a SharePoint server farm, it is recommended that you complete the upgrade in the shortest possible time frame.

When upgrading Kaspersky Security on a SharePoint server farm, it is not recommended to perform any operations with the application until the upgrade has been completed on all SharePoint farm servers.

If you need to resume using the application before an upgrade is completed on a SharePoint server farm, the version number of Security Server should comply when being added to Management Console. You can add Security Server of the previous version to Management Console that has not yet been upgraded, or you can add Security Server of the new version to the upgraded instance of Management Console.

However, Security Server that has not yet been upgraded cannot be added to the upgraded instance of Management Console.

Upgrading Kaspersky Security on a standalone SharePoint server or the first server in a SharePoint farm

When upgrading Security Server and Management Console on the first server in a SharePoint server farm, or on a standalone SharePoint server, the following items are transferred to the new version:

• Active key and additional key that have been added before the application upgrade. The respective validity periods of the keys remain unchanged.
• Settings of Kaspersky Security that have been defined before the application upgrade.
• Objects moved to Backup before the application upgrade.
• Reports created before the application upgrade.

The application uses the application log to save the operation data of the Security Server version that has not yet been upgraded.

Operation statistics of Security Server that have been collected before the application upgrade, will not be saved nor displayed in the Control Center node. Reports that have been created after the application upgrade, will not contain any information about the application's activity before the upgrade.

If you modify any settings of the upgraded Security Server on the first server in a SharePoint server farm, the settings that have been modified will be applied to other SharePoint servers. Security Servers that have not yet been upgraded continue running under the settings defined before the upgrade start.

Connecting Administration Console to a SharePoint farm when updating Kaspersky Security

If Kaspersky Security is installed on SharePoint farm, you can connect Administration Console to any of the SharePoint farm servers.

When Kaspersky Security is being upgraded on SharePoint farm servers, it is not recommended to perform any operations with the application until the upgrade has been completed on all SharePoint farm servers.

If you need to use the application before completing the upgrade on all SharePoint farm servers, be sure to use the matching versions of Administration Console and the application on the SharePoint server.. Administration Console of the previous version should be connected to server with the application version that has not been upgraded, and Administration Console of the new version should be connected to servers with upgraded Kaspersky Security.

During the application upgrade process, Anti-Virus databases are rolled back automatically. For the safety of your computer, you are advised to start the database update after completing the application upgrade.

Starting the application upgrade

The user under which the application update will be run must be granted the rights to access the SQL database.

To run an upgrade of Kaspersky Security deployed in any of the above configurations:

1. If Kaspersky Security Management Console is running on the computer for which you want to upgrade the application, close this Management Console before starting the upgrade.
2. Run the file setup.exe in the distribution package of the application on the computer for which you want to upgrade Kaspersky Security.

   This opens the welcome window of the install package.

3. Click the Kaspersky Security 9.0 for SharePoint Server link in welcome window to launch the Setup Wizard.
4. Click the Install button in the welcome screen of the Setup Wizard.

   The automatic upgrade of the application now starts. When the upgrade completes, the final screen of the Setup Wizard opens.

5. To complete the upgrade and close the Setup Wizard, click the Finish button.

The upgrade completes. When the upgrade of Kaspersky Security 9.0 Maintenance Release 1 to version 9.0 Maintenance Release 2 is complete, you need to restart SharePoint Timer.

During the upgrade, SharePoint server protection is disabled because all services under the application are suspended until the upgrade of Security Server for Kaspersky Security completes.

Restarting the SharePoint Timer service

SharePoint Timer needs to be restarted after Kaspersky Security 9.0 Maintenance Release 1 is upgraded to version 9.0 Maintenance Release 2. The SharePoint Timer service must be restarted on all the servers on which Kaspersky Security is installed.

To restart the SharePoint Timer service:

1. Run Windows PowerShell on behalf of the administrator.
2. In the PowerShell environment, run the Add-PSSnapin Microsoft.SharePoint.PowerShell command.

   The Windows PowerShell snap-in will be added.

3. Run the Get-SPTimerJob job-timer-recycle | Start-SPTimerJob command.

SharePoint Timer will be restarted.

Application setup procedure

This section provides a step-by-step instruction for installation of the application.

Step 1. Installing the required components

To start the installation of Kaspersky Security,

launch the setup.exe file from the application distribution package.

The welcome window of the Kaspersky Security installation package opens. In this window, you can perform one of the following actions:

• Download and install the .NET Framework 3.5 SP1 component (if the component is not installed);

  The computer must be restarted after Microsoft .NET Framework 3.5 SP1 installation. If you continue setup without restart, it may cause problems in the operation of Kaspersky Security.

• Download and install the Microsoft Management Console 3.0 component (if the component is not installed);

  Microsoft Management Console 3.0 (MMC 3.0) is a part of the operating system in Microsoft Windows Server 2003 R2 and later versions. To install the program in earlier versions of Microsoft Windows Server, you need to update MMC to version 3.0.

• start the Setup Wizard by clicking the Kaspersky Security 9.0 for SharePoint Server link.

  If Microsoft SharePoint Server is not installed on the computer, the application prompts you to install Management Console alone. In this case, Security Server and DLP Mpdule cannot be installed on the computer.

Step 1. Viewing the welcome screen and License Agreement

The welcome screen contains information about how to begin the installation of Kaspersky Security on your computer. To switch to the window containing the End User License Agreement, click the Next button.

The End User License Agreement is an agreement between the application user and AO Kaspersky Lab. Checking the box I accept the terms of the License Agreement means that you have read the End User License Agreement and accepted its terms and conditions. You can print the text of the License Agreement by clicking the Print button.

To continue to the next step of the Setup Wizard, click the Next button.

Step 3. Selecting the type of installation

You can select one of the following application installation options:

• Typical. This installation uses the default paths to the installation and data storage folders. The application installs all Kaspersky Security components. The Setup Wizard proceeds to the Configuring the connection between Kaspersky Security and SQL database step.
• Custom. In the next window of the Setup Wizard, you can select the application components to be installed, and the installation and data storage folders. The Setup Wizard proceeds to the Selecting application components step.

Once the installation type is selected, the Setup Wizard proceeds to the next installation step.

Step 4. Selecting the application components

To select the application components to be installed and specify the paths to the installation and data storage folders:

1. Select the application components that you want to install.

   You can install either Security Server (with or without the DLP Module) and Management Console, or Management Console alone. Only Management Console is installed to manage Security Server of Kaspersky Security remotely on a different computer.

2. Click the Browse button, and in the window that opens specify the path to the installation folder.

   The full path to the default installation folder is displayed in the field Destination folder.

3. Click the Browse button, and in the window that opens specify the path to the data storage folder.

   The full path to the default data storage folder is displayed in the field Data storage folder.

   The data storage folder contains application runtime logs and application databases.

4. Click the Reset button if you want to cancel the paths to the installation and data storage folders that you specified and return to the default options.
5. Click the Disk Usage button if you want to view information about free space available on local drives required to install the selected components.

   The window that opens displays information about local drives.

6. To continue to the next step of the Setup Wizard, click the Next button.

Step 5. Configuring the connection between Kaspersky Security and SQL database

To configure a connection to link Kaspersky Security to an SQL database:

1. In the Name of SQL server field, specify the name (or IP address) of the computer with SQL server installed, and the name of the SQL server instance, for example, MYCOMPUTER\SQLEXPRESS.

   Click the Browse button opposite the Name of SQL server field to select the SQL server in the network segment in which the computer is located.

   If the connection is to a remote SQL server, make sure that the SQL server is enabled to support TCP/IP as a client protocol.

2. In the Database name field, specify the name of the database where the application will store Backup data, statistics, and application configuration details.

   If you install Kaspersky Security on a farm of SharePoint servers, make sure that all servers with the installed application use one and the same SQL database. To this end, identical values must be specified in the Name of SQL server and Database name fields when you install the application on all farm servers.

   The application can use one of the following databases:

   • The database created in advance by the SQL server administrator.
   • The database created automatically by the Setup Wizard installer.
   • The database used by the previous version of the application (version 9.1.45175) – if you are reinstalling or upgrading the application.

     After being reinstalled or updated, the application uses the contents of this database: runtime reports, statistics, setup information. The configuration includes application settings that were change during the reinstallation / update of the application.

3. Select an account for use with the SQL server during installation of the application.
   • Current account. Current user account will be used then.
   • Other account. In this case, enter the name and password for the specified user account. You can also click the Browse button to select an account.

   The account must be assigned the necessary rights and sysadmin role on the SQL server specified in the Name of SQL server field.

4. To finish the configuration and continue to the next step of the Setup Wizard, click the Next button.

Kaspersky Security does not provide channel encryption during data transmission between the server and the SQL database. To secure your data, manually encrypt data to be transmitted over communication channels.

Step 6. Select an account for running Kaspersky Security services

To select an account for running Kaspersky Security services,

specify the name and password of the account in the Account and Password fields in the Setup Wizard window, or select an account by clicking the Browse button.

To ensure proper operation of the application, the account must be assigned all the necessary rights.

Step 7. Completing installation

To continue the installation:

1. Click the Install button in the Setup Wizard window.

   It will initiate copying of the application files to the computer and registration of the components in the system. Once the files are copied and the components are registered in the system, the Setup Wizard will display a notification informing about completion of the application setup.

2. To finish the installation, click the Next button.

   If the application is installed on a standalone SharePoint server or the first server in a SharePoint farm, the Configuration Wizard starts automatically. The Configuration Wizard allows you to specify the initial application settings: activate the application, enable SharePoint server protection, and configure application database updates.

   If you are installing the application on the remaining servers of a SharePoint farm, the Application Configuration Wizard will not be started. The installation is now complete, and the Setup Wizard closes automatically.

   Kaspersky Security on these SharePoint farm servers uses the settings defined in the Application Configuration Wizard during setup on the first server of the SharePoint farm. Protection on subsequent servers of the SharePoint farm is enabled as soon as Kaspersky Security has been installed, but only if SharePoint farm server protection was enabled at the Configuring Anti-Virus protection step of the Application Configuration Wizard.

Changes in the system after installing the application

When Kaspersky Security is installed on the computer, the following changes are made:

• Kaspersky Security folders are created.
• Kaspersky Security are registered.
• Kaspersky Security keys are registered in the system registry.

In special cases, application behavior can be modified by means of special configuration files that have to be saved in the application folder. Contact Technical Support for more details.

Kaspersky Security folders

Kaspersky Security folders created on the computer

Kaspersky Security services

Kaspersky Security services

System registry keys

System registry keys

Page top

Getting started. Application Configuration Wizard

This section provides step-by-step instructions for preparing the application for use with the help of the Application Configuration Wizard.

You can close the Application Configuration Wizard by clicking the Cancel button in the welcome window of the Application Configuration Wizard, and perform the necessary configuration after starting Kaspersky Security.

Step 1. Activating the application

To activate the application:

1. Click the Add button in the Application Configuration Wizard.
2. In the window that opens, specify the path to the key file (a file with the .key extension) and click the Open button.

   The key corresponding to the license that entitles the owner to use the entire functionality of Kaspersky Security for the specified time period will be added in the product then.

   The key added during installation on the first SharePoint farm server is automatically used to install the application on subsequent SharePoint farm servers.

To remove the key,

click the Delete button in the Application Configuration Wizard.

Step 2. Enable Anti-Virus protection

To configure the anti-virus protection settings for a SharePoint server or servers:

1. Select the Enable anti-virus protection check box to enable anti-virus scanning of files as they are uploaded to the server or downloaded from the server to the user's computer.
2. Select the Enable automatic database updating check box if you want the application to update the anti-virus databases automatically as scheduled, or clear the check box if you want to run updates of the databases manually.

Step 3. Kaspersky Security Network

In the Use of Kaspersky Security Network window, you can view the Statement on the use of Kaspersky Security Network services for protection of your computer.

To participate in Kaspersky Security Network,

select the I accept the KSN Agreement and want to use KSN check box if you have read the KSN Statement and accepted all of its conditions.

Step 3. Configuring the proxy server settings

In the Configuring proxy server to retrieve updates and connect to Kaspersky Security Network window of the Application Configuration Wizard, you can define the proxy server settings for Kaspersky Security.

To configure the proxy server settings, perform the following steps:

1. Select the Use proxy server check box if you want the application to connect to Kaspersky Lab update servers via a proxy server.
2. Specify the proxy server address in the Proxy server address field.
3. Specify the proxy server port number in the Port field.

   The default port number is 8080.

4. If a password is required to access the proxy server, specify the proxy user authentication settings. To do this, select the Use authentication check box and fill in the Account and Password fields.

   The application uses the specified proxy server to retrieve updates and connect to Kaspersky Security Network

To finish configuration of the application and proceed to the final step in the Configuration Wizard, click the Next button.

Step 5. Completing application configuration

To stop the application configuring:

1. If you want Kaspersky Security Management Console to run automatically after closing the Configuration Wizard, leave the Start Management Console after the Application Configuration Wizard finishes check box selected.
2. To finish the configuration of the application and exit the Configuration Wizard, click the Finish button.

   The Configuration Wizard closes. If the Start Management Console after the Application Configuration Wizard finishes check box has been selected, Management Console starts as soon as the Configuration Wizard closes.

Restoring the application

If the application malfunctions (due to a damaged executable file of the application or the application databases, or a fault in the operation of VS API interceptor), you can restore the application using the Setup Wizard.

During restoration, the installer replaces the executable files and libraries used by Kaspersky Security with the files contained in the Distribution, application databases – databases in the Distribution, and replaces the registration of VS API interceptor.

The application's configuration and event logs are saved during the restoration process.

To restore Kaspersky Security:

1. Launch the setup.exe file from the application distribution package.

   This opens the welcome window of the install package.

2. Click the Kaspersky Security 9.0 for SharePoint Server link in welcome window to launch the Setup Wizard.
3. Click the Next button in the welcome screen of the Setup Wizard.

   This opens the Change, Restore, or Remove the Application window.

4. In the Change, Repair or Remove the application window, click the Restore button.

   This opens the Restoration window.

5. In the Restoration window, click the Repair button.

   The process to replace the executable files, libraries, and databases of the application and register VS API interceptor begins.

Restoration of the application will not be possible if its configuration files are damaged. Removing and reinstalling the application is recommended in that case.

Removing the application

You can delete Kaspersky Security from the computer using:

• Standard Microsoft Windows tools to install/uninstall applications.
• Using the Setup Wizard.

To uninstall Kaspersky Security from the SharePoint farm, the application must be deleted from each SharePoint farm server.

To uninstall Kaspersky Security using the Setup Wizard:

1. Launch the setup.exe file from the application distribution package.

   This opens the welcome window of the install package.

2. Click the Kaspersky Security 9.0 for SharePoint Server link in welcome window of the install package to launch the Setup Wizard.

   This opens the start window of the Setup Wizard.

3. In the start window of the Setup Wizard, click the Next button.
4. In the Change, Restore, or Remove the Application window click the Remove button.
5. In the Uninstallation window, confirm your choice by clicking the Remove button.

   The process of removing application files from the computer and unregistering application components begins.

6. If you are removing the application from a standalone SharePoint server or from the last server of a SharePoint farm, once the files have been removed a window appears prompting you to delete the application database. Select one of the following operations in this window:
   • If you want to delete the database containing the application configuration, Backup and statistical data, click Yes.

     To delete the database, the account under which the removal process is running must possess the db_owner role for this database. If the account does not possess this role, in the window that appears clickNo. When Kaspersky Security is uninstalled, you need to delete the database manually.

   • If you do not want to delete the database in order to use the data stored in it for subsequent application re-installations, click No.

Application licensing

This section provides information about general concepts related to the application licensing.

About the End User License Agreement

The End User License Agreement is a binding agreement between you and Kaspersky Lab AO, stipulating the terms on which you may use the application.

Carefully review the terms of the License Agreement before using the application.

You can view the terms of the License Agreement in the following ways:

• During installation of Kaspersky Security.
• By reading the license.txt file. This file is included in the application's distribution kit.

By confirming that you agree with the End User License Agreement when installing the application, you signify your acceptance of the terms of the End User License Agreement. If you do not accept the terms of the End User License Agreement, you must abort application installation and must not use the application.

About the license

A license is a time-limited right to use the application, granted under the End User License Agreement.

A license entitles you to the following kinds of services:

• Use of the application in accordance with the terms of the End User License Agreement
• Technical support

The scope of services and application usage term depend on the type of license under which the application is activated.

The following license types are provided:

• Trial – a free license intended for trying out the application.

  A trial license is of limited duration. When the trial license expires, all Kaspersky Security features become disabled. To continue using the application, you need to purchase a commercial license.

  You can activate the application under a trial license only once.

• Commercial – a pay-for license that is provided when you buy the application.

  When the commercial license expires, the application continues running with limited functionality (for example, Kaspersky Security database updates are not available). To continue using Kaspersky Security in fully functional mode, you must renew your commercial license.

We recommend renewing the license before its expiration to ensure maximum protection of your computer against security threats.

About the license certificate

License Certificate is a document provided together with a key file or activation code.

The License Certificate contains the following license information:

• Order ID;
• Details of the license holder
• Information about the application that can be activated using the license
• Limitation on the number of licensing units (devices on which the application can be used under the license)
• License start date
• License expiration date or license validity period
• License type

About the key

A key is a sequence of bits with which you can activate and subsequently use the application in accordance with the terms of the End User License Agreement. A key is generated by Kaspersky Lab.

You can add a key to the application by using a key file. After you add a key to the application, the key is displayed in the application interface as a unique alphanumeric sequence.

Kaspersky Lab can black-list a key over violations of the End User License Agreement. If the key has been black-listed, you have to add a different key to continue using the application.

A key may be an "active key" or an "additional key".

An active key is the key that is currently used by the application. A trial or commercial license key can be added as the active key. The application cannot have more than one active key.

An additional key is a key that entitles the user to use the application, but is not currently in use. An additional key automatically becomes active when the license associated with the current active key expires. An additional key may be added only if the active key is available.

A key for a trial license can be added only as the active key. A trial license key cannot be installed as the additional key.

About the key file

A key file is a file with the .key extension that you receive from Kaspersky Lab. Key files are designed to activate the application by adding a key.

You receive a key file at the email address that you provided when you bought Kaspersky Security or ordered the trial version of Kaspersky Security.

You do not need to connect to Kaspersky Lab activation servers in order to activate the application with a key file.

You can recover a key file if it is accidentally deleted. You may need a key file to register with Kaspersky CompanyAccount.

To recover a key file, do one of the following:

• Contact the license seller.
• Obtain a key file on the Kaspersky Lab website based on your existing activation code.

About data provision

To increase the protection level, by accepting the terms of the License Agreement, you agree to provide the following information to Kaspersky Lab in automatic mode:

• Details of the currently used license
• Data on the Kaspersky Security version currently in use

When you participate in Kaspersky Security Network, information obtained as a result of the Kaspersky Security operation is automatically sent from the computer to Kaspersky Lab: The list of data items that are to be sent is given in the KSN Statement. You can view the terms of the KSN Statement in the following ways:

• By clicking the KSN Participation Agreement button in the Settings node.
• By reading the ksn_agreement.rtf document located in the application installation folder.

Participation in Kaspersky Security Network is voluntary. You can opt out of participating in Kaspersky Security Network at any time. No personal data of the user is collected, processed, or stored.

Kaspersky Lab protects any received information pursuant to the legal requirements and effective Kaspersky Lab rules. Kaspersky Lab uses any collected information in depersonalized format and as general statistics only. General statistics are automatically generated using original collected information and do not contain any private data or other confidential information. Originally collected information is cleared as it is accumulated (once per year). General statistics are stored indefinitely.

Getting started

This section provides information about how to run Kaspersky Security and add SharePoint servers with installed Security Server to Management Console.

Starting: Management Console

The services of Kaspersky Security start automatically during the operating system start-up. Management Console is started manually.

To start Management Console, perform the following steps:

1. In the Start menu select Programs.
2. Select the Kaspersky Security 9.0 for SharePoint Server folder in the list of programs.
3. Select Kaspersky Security 9.0 for SharePoint Server in the menu.

When Management Console starts, the snap-in of Kaspersky Security connects to Microsoft Management Console, so the console tree displays the application icon and the node of Kaspersky Security 9.0 for SharePoint Server.

When Management Console is running, you can add servers on which the Security Server component has been installed (hereinafter referred to as "Protected servers") to Management Console.

The application records information about starts and stops of Management Console to Windows Event Log. A record contains information about the time of a start / stop of Administration Console, as well as the user who initiated those activities.

Kaspersky Security 9.0 for SharePoint Server

Show all | Hide all

The Kaspersky Security 9.0 for SharePoint Server node displays information about the current version of the application and its purpose. In this node, you can view the list of SharePoint servers that have been added to Management Console, as well as add new servers and proceed to servers in the console tree.

In the Protected servers section, you can add to Management Console the SharePoint server on which Security Server has been installed (hereinafter referred to as protected SharePoint server or simply protected server). After adding a protected server, you can add other ones or proceed to that server's protection settings.

Add server

The Added servers list displays the names of protected SharePoint servers that have been added to Management Console. Clicking the <Server name> button takes you to the Control Center node of the selected Server in Administration Console.

Adding protected servers to Management Console

To add protected servers to Management Console:

1. Start Management Console.
2. Select in Management Console tree the node of Kaspersky Security 9.0 for SharePoint Server.
3. In the workspace, click the Add server button.
4. Select the appropriate option in the displayed dialog:
   • Local. The application adds to Management Console the SharePoint server on which Management Console and Security Server are installed. This is the default option.
   • Remote. The application adds to Management Console the SharePoint server on which Security Server is installed. If you select this option, use one of the following methods to specify the server name:
     • Click Browse and select the computer from the list in the window that opens.
     • Enter the server name manually as an IP address (in IPv4 or IPv6 notation) or DNS name.
5. Click the OK button.

The server will be added to Management Console and shown in the nodes tree.

If Kaspersky Security is installed on a farm of SharePoint servers, you can add any server of the farm to Management Console.

Adding a server

Show all | Hide all

In the Add server window, you can select the protected SharePoint server that will be added to Management Console.

Local

Remote

Control Center

In the Control Center node, you can view the details of the protection status of a server or a farm of SharePoint servers.

The workspace of this node displays the Events and statistics and List of farm servers tabs, depending on the schemes for deployment of Kaspersky Security on the organization's network. The List of farm servers tab is displayed if Kaspersky Security is installed on a farm of SharePoint servers that handle a single database for configuration of the application and Backup.

Default protection

The protection status of the SharePoint server depends on the settings defined in the Application Configuration Wizard during installation. A detailed description of the Application Configuration Wizard is provided in the Installation Guide for Kaspersky Security 8.0 for SharePoint Server.

If the Enable Anti-Virus protection check box was selected in the Application Configuration Wizard during setup on the first SharePoint server, the application components are launched in the following mode at application startup:

• On-access scan:
  • Anti-Virus scan is enabled;
    • Action on infected and probably infected files: Disinfect;
    • Action on corrupted files and password-protected files: Skip;
  • Content filtering is enabled.
• On-demand scan:
  • On-demand scan tasks are not created. On-demand scan is not performed.

If the Enable Anti-Virus protection check box was cleared during application installation, the Anti-Virus scan and Content filtering components are disabled at application startup, and on-demand scanning is not performed.

Viewing SharePoint server protection status details

The Information about server protection section shows the application version and the status of anti-virus scanning and Content Filtering. Available values:

• Enabled. Anti-Virus protection / Content filtering is enabled in the On-access scan node of Management Console and is working correctly on all SharePoint farm servers.
• Disabled. Anti-Virus protection / Content filtering is disabled
  on all SharePoint farm servers.
• Protection errors. Errors detected in the operation of Anti-Virus protection / Content filtering on at least one of the SharePoint farm servers.
• Unknown. The status of anti-virus protection / Content filtering on at least one of the SharePoint farm servers is unknown.

The section contains a description of any errors that occur.

Events and statistics

Show all | Hide all

The Events and statistics tab displays summary information about the protection status of a server or a farm of SharePoint servers, about the application components, as well as the application operation statistics for the last week.

The Protection of farm servers section displays the current version of the application, the statuses of the application subsystems (i.e., anti-virus protection and content filtering) and the DLP Module component.

• Enabled. This component / subsystem is enabled and operates properly on a server or a farm of SharePoint servers.
• Disabled. This component / subsystem is disabled on a server or a farm of SharePoint servers.
• Protection errors. Errors have been detected in the operation of this component / subsystem on at least one of the SharePoint servers. The section contains a description of any errors that occur.
• Unknown. The status of the subsystems on one of the SharePoint servers is unknown.

Real-time protection settings

The Anti-virus settings of SharePoint section displays information about the anti-virus settings of SharePoint. The operation of Kaspersky Security in on-access scan mode depends on the anti-virus settings defined on SharePoint.

For example, if the scanning of files downloaded from SharePoint websites to a computer is disabled in the anti-virus settings of SharePoint, Kaspersky Security will not be able to scan those files.

Define anti-virus settings of SharePoint

The workspace displays the Security Server license section (always) and DLP Module license section (if components such as Security Server and DLP Module have been installed on the SharePoint server). The Security Server license and DLP Module license sections provide information about the status of the key for corresponding components, the license expiration date, as well as the number of users and availability of an additional key (added or not added).

If any key-related errors occur, the sections display information about those errors

Licensing settings

The Database update section shows information about the current status of the anti-virus databases, their latest update, the number of records in the databases, as well as information about update-related errors.

Update settings

The Protection of farm servers section contains information about the current protection status on the farm of SharePoint servers. If Kaspersky Security is installed on a stand-alone SharePoint server, the Protection of farm servers section is not displayed.

List of farm servers

The Statistics section contains statistics on the application's operation for the last week. The charts present information about the number of positives returned by the application components, the number of threats detected, files blocked, and non-infected files.

Reports

List of farm servers

Show all | Hide all

The List of farm servers tab displays a table with a list of protected SharePoint servers included in the farm, as well as information about the protection status and the update status of Kaspersky Security databases on all of the servers.

Delete servers

Licensing settings

Update settings

Information about server protection

The Protection of farm servers section shows the current version of the application and the status of its components. The following component statuses are possible:

• Enabled. The component is enabled and runs correctly on all SharePoint farm servers.
• Disabled. The component is disabled on all the servers in the SharePoint farm.
• Protection errors. Errors have been detected in the operation the component on at least one of the SharePoint farm servers. The section contains a description of any errors that occur.
• Unknown. The status of Anti-Virus protection / Content filtering on at least one of the SharePoint farm servers is unknown.

Anti-virus settings of SharePoint

The Anti-virus settings of SharePoint section displays information about the scan settings configured on the SharePoint server. If anti-virus protection is disabled on the SharePoint server, Kaspersky Security does not perform Anti-Virus scanning and Content filtering in real time.

Application licenses

Depending on the application components installed on the SharePoint server, the workspace may display the following sections with licensing information:

• Security Server license;
• DLP Module license.

The Key status field displays the details of the active key. Available field values:

• Current license. A key has been added, and the license has not expired.
• Errors on some farm servers. Licensing errors or violations have been detected on at least one of the SharePoint farm servers (for example, a key is missing or blacklisted). The error description is displayed in red, and the section itself is highlighted in orange.
• Key is missing. No key has been added, and Management Console is deployed on a standalone SharePoint server.

The Expiration date field displays the expiration date of the license.

If the number of days remaining on the license is less than the number of days specified in the Notifications node, the expiration date in the field is displayed in red. You are advised to add an additional key in the Licensing node before the current license expires.

The Additional key field contains information about the availability of an additional key. Available values:

• Added. An additional key has been added, and the validity period of the active key has not expired yet.
• Not added. One of two possibilities:
  • an additional key is not added;
  • an additional key is installed, but the active key has expired.

The Users field contains information about the maximum number of company employees with access to a SharePoint server protected by the application.

The Functionality field contains information on available application features. Available field values:

• Full functionality. No limitations are imposed on the operation of Kaspersky Security.
• The license expired. Database updates and technical support are not available. The application does not update Anti-Virus protection, Content filtering, and DLP Module databases. You have to replace the key to be able to download the current databases.
• Management only. No key is installed, or the trial license has expired. Only management of Kaspersky Security is available. Anti-Virus protection and Content filtering are not performed, and updates are not available.
• Update only. The key is in the black list. Only database updates are available. Anti-virus scanning and content filtering are not performed.

Protection of SharePoint farm servers

The Protection of farm servers section displays information about the current protection status of servers in the SharePoint farm.

SharePoint farm servers that have not accessed the database within the past 60 seconds are considered inactive by the application. The number and list of such servers are shown in this section. Detailed information about why the database was not accessed is displayed in a table on the List of farm servers tab.

If Kaspersky Security is installed on a standalone SharePoint server, the Protection of farm servers section is not displayed in the workspace of the Control Center (<Server name>) node.

Database update

The Database update section shows information about the current state of the anti-virus databases, the date of the last update, and the number of records in the databases.

The Status field displays information about the status of databases currently in use by Kaspersky Security.

If Kaspersky Security is installed on a SharePoint farm, the Status field can take the following values:

• Databases are up to date on all farm servers. Databases used on all SharePoint farm servers were updated in the past 24 hours and are not corrupted.
• Databases outdated on some farm servers. Databases were not updated in the past 24 hours.
• Databases corrupted on some farm servers. Databases are missing or corrupted, and cannot be read by the application on at least one SharePoint farm server.

If Kaspersky Security is installed on a standalone SharePoint server, the Status field can take the following values:

• Databases are up to date. Databases were updated in the past 24 hours and are not corrupted.
• Update required. Databases were not updated in the past 24 hours.
• Databases corrupted. Databases are missing or corrupted and cannot be read by the application.

The Last update status field displays the date and result of the most recent update of the databases. If an error occurred during the last database update, the field contains a description of the error. In this case, the Database update section is highlighted in orange, and the description of the error is displayed in red.

If Kaspersky Security is installed on a standalone SharePoint server, the section displays the Last update field, which contains the date and time of the most recent attempt to update the databases.

The Release date and time field shows the release date of the earliest database on all SharePoint farm servers. If the databases are out of date, the date is displayed in red. In this case, it is recommended that you go to the Updates node and update the application databases.

The Number of records field contains information about the total number of records in the databases on the server since the time of the first update.

Statistics

The Statistics section contains statistics on the application's operation for the last week. The graph presents the following information about the number of positives returned by application components, the number of threats detected, files blocked, and clean files:

• ANTI-VIRUS PROTECTION:
  • Total files. The total number of files that are infected, probably infected, corrupted, password-protected, or clean, and files that returned an error during Anti-Virus scanning.
  • Threats. The number of malicious objects detected in scanned files.
  • Excluded. The number of files excluded from the scan scope.
  • Non-infected. The number of files scanned by the application and recognized as not infected.
  • Other. Files that do not match any other categories. The group includes, for example, files not scanned because of key errors or files that have caused errors while being processed.
• CONTENT FILTERING:
  • Total. The total number of files and SharePoint web objects that caused content filtering incidents (by content, by file type and format, and masks of unwanted file names, files with Non-infected status, and files that returned content filtering errors).
  • Files with unwanted content. The number of files found by Content filtering to contain unwanted words or phrases included in Kaspersky Lab categories and custom categories. You can configure custom categories in Content filtering settings.
  • Web objects with unwanted content. The number of SharePoint web objects that have been found by Content Filtering to contain unwanted words or phrases included in Kaspersky Lab categories and custom categories, and the number of web objects found to contain malicious or phishing URLs.
  • Files in unwanted formats. Number of files in unwanted formats.
  • Found clean. The number of files that are free from unwanted content (with the names and formats not matching the specified masks of unwanted file names and formats), malicious or phishing URLs.
  • Other. Files that do not match any other category including files unprocessed because of errors.

On-access scan

The application scans files and web objects when they are accessed by users, i.e., when uploading files to SharePoint websites, when download files from SharePoint websites to the computer of a user, and when modifying web objects.

In the On-access scan node, you can enable and configure anti-virus protection and content filtering of files and web objects.

About on-access scan

Real-time protection is an operation mode of Kaspersky Security in which objects are scanned for malicious code and web objects are scanned for unwanted web content in real-time mode. The application scans objects when they are transferred to a Server, modified, or downloaded from a Server to a user's computer.

Kaspersky Security scans the following objects:

• Files uploaded by the user to the SharePoint server;
• Files copied from the SharePoint server to the computer;
• SharePoint web objects (such as wiki pages and forums hosted on the SharePoint server) when they are created or modified.

When the real-time protection is enabled, Kaspersky Security performs the following actions:

• Performs anti-virus scan of the file in accordance with the scan exclusion settings
• Searches for unwanted file formats and unwanted file names.
• Scans files and SharePoint web objects for unwanted content
• Scans links contained in web objects for malicious and phishing web addresses

The application performs one type of scan:

• If a file was blocked during Content filtering, the application does not perform a virus scan on this file.
• If a file was blocked during a virus scan, the application does not scan its contents.

Non-infected objects are allowed in to the user, while objects that contain threats or are possibly infected will be processed in accordance with the protection settings defined.

Status labels assigned to files following on-access scan

Based on the results of on-access scanning, the application assigns one of the following status labels to the file:

• Not infected. No threats detected in the file.
• Infected. A file a segment of whose code fully matches a code segment of a known threat.
• Probably infected. A file whose code contains a modified segment of code of a known threat, or a file resembling a threat in the way it behaves.
• Password-protected. A password-protected archive.
• Corrupted. The file cannot be read by Kaspersky Security.

Based on the results of content filtering, the application assigns one of the following status labels to the file:

• Allowed. There is no unwanted content in the file.
• Forbidden format. The file has an unwanted format.
• Forbidden mask. The file name contains an unwanted mask.
• Forbidden content. The file has been found to contain unwanted words and phrases.

Based on the results of content filtering, the application assigns one of the following status labels to the SharePoint web part:

• Allowed. The SharePoint web object does not contain unwanted content, malicious or phishing URLs.
• Forbidden content. The SharePoint web object has been found to contain malicious / phishing URLs or unwanted content.

About anti-phishing scans

Phishing scan is a feature of Kaspersky Security designed to protect the user's personal data.

While scanning the content of SharePoint web objects, the application checks links against lists of malicious and phishing URLs.

Checking links against the list of malicious URLs allows the application to detect URLs redirecting to infected websites. Malicious URLs can be contained in the text of messages disguised as ads. The ad text prompts you to find out more about a product or service by clicking a link. The link takes you to a website with viruses, and the computer gets infected. The computer is infiltrated by viruses and malware that can access your private data and relay it to criminals.

By checking links against the list of phishing web addresses, the application is able to detect links redirecting to fraudulent websites. A phishing attack can be disguised, for example, as an email message from your bank with a link to its official website. The link takes you to an exact copy of the bank's website where you can even see the bank site's address in the browser despite actually being on a spoofed website. From this point forward, all of your actions on the site are tracked and can be used to steal your private data.

A phishing scan of SharePoint web objects detects malicious and phishing URLs embedded in the text of web objects. Malicious and phishing URLs are designed to steal your personal data or information entered in a web form. The application performs a phishing scan when a SharePoint web object is created or modified. If the phishing scan detects at least one web address appearing on lists of malicious and phishing ones, the application assigns the Phishing status to the web object.

On detecting a phishing or malicious URL in a SharePoint web object, the application performs the action configured in the Content filtering section. If the action is set to Block, the application shows a dialog saying that web content cannot be created or modified.

To protect SharePoint servers against phishing, the application uses a list of URLs of web resources that have been labeled as malicious or phishing URLs by Kaspersky Lab. The database is regularly updated and is part of the Kaspersky Security delivery kit.

You can use Kaspersky Security Network services for added protection of SharePoint servers against phishing. It uses cloud computing technology that provides up-to-the-minute information about threats before they have been included in Kaspersky Lab anti-phishing databases.

Kaspersky Security operation depending upon the SharePoint server settings

The operation of Kaspersky Security in on-access scan mode depends on the values of the anti-virus settings of SharePoint.

Anti-virus settings of SharePoint

The anti-virus protection settings of Kaspersky Security may conflict those of SharePoint. For example, if the Allow users to download infected files check box is selected in the anti-virus protection settings of SharePoint while the Block action is selected in the anti-virus protection settings of Kaspersky Security, the user will be able to download an infected file. Before downloading, the web browser window shows a warning message informing that Kaspersky Security recommends you to avoid downloading that file.

When a conflict arises between the anti-virus protection settings of Kaspersky Security and the anti-virus settings of SharePoint, the latter ones will have the higher priority.

General

Show all | Hide all

On the General tab, you can configure the anti-virus protection and content filtering to perform on-access scanning. While on this tab, you can go to the website of SharePoint administration center in order to define the SharePoint anti-virus settings. The values of the anti-virus settings of SharePoint affect the application's operation.

Move files to backup

Exclude from scanning any files larger than

The Anti-Virus scan section allows enabling the anti-virus protection and configure the application's actions on files that users access.

Enable Anti-Virus scan

Actions with infected and probably infected files

Actions with password-protected files

Actions with corrupted files

The Content filtering section allows enabling content filtering, as well as configuring the application's actions on files with unwanted content.

Enable Content filtering

Actions with files that contain unwanted content

Scan SharePoint web content

Scan content of SharePoint web objects for phishing

The Anti-virus settings of SharePoint section displays information about the anti-virus settings of SharePoint. The operation of Kaspersky Security in on-access scan mode depends on the anti-virus settings defined on SharePoint.

For example, if the scanning of files downloaded from SharePoint websites to a computer is disabled in the anti-virus settings of SharePoint, Kaspersky Security will not be able to scan those files.

Define anti-virus settings of SharePoint

Enabling and disabling on-access anti-virus scanning

To enable or disable anti-virus scanning:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the On-access scan node.
2. On the General tab, perform one of the following actions:
   • Select the Enable Anti-Virus scan check box if you want the application to perform on-access anti-virus scanning of the file.
   • Clear the Enable Anti-Virus scan check box if you do not want the application to perform on-access anti-virus scanning of the file.
3. Click the Save button.

Configuring basic scan settings

To define the general settings of real-time protection:

1. In the Management Console tree, select the Server for which the real-time protection should be configured.
2. Select the On-access scan node.
3. In the workspace, select the General tab.
4. Select the Move files to backup check box if you want Kaspersky Security to add to Backup copies of files that have been blocked by Anti-Virus scanning and Content Filtering.
5. To limit the size of files to be scanned, select the Exclude from scanning any files larger than check box and specify the maximum size of files to be scanned (in MB). The default value is 10 MB.
6. Click the Save button.

Configuring object processing rules for on-access scanning

Kaspersky Security will handle infected, potentially infected, corrupted and password-protected files depending on the Anti-Virus scan settings of the SharePoint server.

To create object processing rules for anti-virus scanning:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the On-access scan node and click the General tab in the workspace.
2. In the Anti-Virus scan section, open the Actions with infected and probably infected files dropdown list and select one of the following actions:
   • Disinfect. Kaspersky Security attempts to disinfect the file. If the file cannot be disinfected, Kaspersky Security blocks it (the file is not uploaded to the SharePoint server or downloaded from the server to the user's computer).
   • Block. Kaspersky Security blocks the file.
   • Skip. Kaspersky Security does not perform any action on the file. The file can be uploaded to the SharePoint server or downloaded from the server to the user computer.
3. In the Anti-Virus scan section, open the Actions with password-protected files dropdown list and select one of the following actions:
   • Disinfect. Kaspersky Security blocks the file. The file cannot be uploaded to the SharePoint server or downloaded from the server to the user computer.
   • Skip. Kaspersky Security does not perform any action on the file. The file can be uploaded to the SharePoint server or downloaded from the server to the user computer.
4. In the Anti-Virus scan section, open the Actions with corrupted files dropdown list and select one of the following actions:
   • Block. Kaspersky Security blocks the file. The file cannot be uploaded to the SharePoint server or downloaded from the server to the user computer.
   • Skip. Kaspersky Security does not perform any action on the file. The file can be uploaded to the SharePoint server or downloaded from the server to the user computer.

     If the Skip option is selected, Kaspersky Security does not take any action on the file, but assigns one of the status values to the file based on the scan results. Information about the file will be added to reports and statistics.

5. To save the changes, click the Save button.

To create object processing rules for content filtering:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the On-access scan node and click the General tab in the workspace.
2. In the Content filtering section, open the Actions with files that contain unwanted content dropdown list and select one of the following actions:
   • Block. Kaspersky Security blocks the file. The file cannot be uploaded to the SharePoint server or downloaded from the server to the user computer.
   • Skip. Kaspersky Security does not perform any action on the file. The file can be uploaded to the SharePoint server or downloaded from the server to the user computer.
3. To save the changes, click the Save button.

If the Skip option is selected, Kaspersky Security does not take any action on the file, but assigns one of the status values to the file based on the scan results. Information about the file will be added to reports and statistics.

Enabling and disabling on-access content filtering

To enable or disable Content Filtering:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the On-access scan node.
2. On the General tab, perform one of the following actions:
   • Select the Enable Content filtering check box if you want the application to perform content filtering of the file during on-access scanning.
   • Clear the Enable Content filtering check box if you do not want the application to perform content filtering of the file during on-access scanning.
3. Click the Save button.

For Content filtering to work properly, the Kaspersky Security account must have site collection administrator privileges (for all site collections) and administrator privileges for the SQL database containing the site collection.

Enabling and disabling SharePoint web object scanning

To enable or disable the scanning SharePoint web objects:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the On-access scan node.
2. On the General tab, perform one of the following actions:
   • Select the Scan SharePoint web content check box if you want the application to scan SharePoint web objects when they are created or modified.
   • Clear the Scan SharePoint web content check box if you do not want the application to scan SharePoint web objects when they are created or modified.

   Kaspersky Security scans SharePoint web objects if Content Filtering is enabled (the Enable Content filtering check box is selected).

   If the Scan SharePoint web content check box is selected, the application scans SharePoint web objects that are created or modified for unwanted words or phrases included in Kaspersky Lab categories and custom categories within the search scope configured in the Content filtering settings.

   On detecting unwanted content in a SharePoint web object, the application makes a corresponding record in the application log and the Windows event log. Kaspersky Security does not save the SharePoint web objects or move them to Backup. The application shows a message that such SharePoint web object cannot be saved or modified.

   If Kaspersky Security blocks a SharePoint web object under Microsoft SharePoint Server 2010, the application may fail to save the changes made to this SharePoint web object or the newly created SharePoint web object.

3. Click the Save button.

Enabling and disabling Anti-Phishing scanning of web content

To enable or disable Anti-Phishing scanning of web content:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the On-access scan node.
2. On the General tab in the Content filtering section, perform one of the following actions:
   • Select the Scan content of SharePoint web objects for phishing check box if you want the application to scan the content of a created or modified SharePoint web object for links appearing on the lists of malicious or phishing URLs.
   • Clear the Scan content of SharePoint web objects for phishing check box if you do not want the application to scan the content of a created or modified SharePoint web object for links appearing on the lists of malicious or phishing URLs.

   Kaspersky Security scans web content for malicious and phishing links if Content Filtering is enabled (the Enable Content filtering check box is selected) and scanning of SharePoint web objects is enabled (the Scan SharePoint web content check box is selected).

   If the Scan content of SharePoint web objects for phishing check box is selected, the application checks URLs against the Kaspersky Lab database of malicious and phishing URLs when web content is created or modified. If Kaspersky Security Network is used to protect a server or servers, information about the malicious / phishing URL can be relayed to KSN services.

   On detecting a phishing threat in a SharePoint web object, the application logs information about it in Reports.

3. Click the Save button.

Anti-Virus scan exclusions

Show all | Hide all

On the Exclusions from scan tab, you can define the settings for exclusion of files from scanning.

The File formats section displays a list of file formats grouped by type (executable files, data, multimedia, images, archives). Clicking the button next to the name of a group opens a list of file formats (or subgroups) included in that group.

You can configure exclusions from scanning by selecting the check boxes next to relevant groups, subgroups, and specific file formats. The real-time protection settings will not be applied to files of selected formats. The application allows uploading files of specified formats to SharePoint websites, as well as downloading them from SharePoint websites to the computer.

All boxes are cleared by default.

Expand all

Minimize all

In the File masks section, you can create a list of file masks, as well as select file masks that will be used to exclude files from scanning.

If the check box is selected next to a mask, the application allows uploading to SharePoint websites files that correspond to that mask, as well as downloading such files from SharePoint websites to the computer.

Add

Change

Delete

Creating on-access Anti-Virus scan exclusions

To reduce the load on the SharePoint server caused by on-access Anti-Virus scanning, you can specify file formats or file name masks to be excluded from scanning and set the maximum size of files to scan.

To exclude unwanted file formats from on-access anti-virus scanning:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the On-access scan node.
2. In the workspace, select the Exclusions from scan tab.
3. In the File formats list, select the check boxes next to the items in the file formats tree that correspond to the relevant formats.

   Make a convenient use of the tree with the Expand all and Minimize all buttons.

4. To save the changes, click the Save button.

To exclude files that match specific masks from Anti-Virus scanning:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the On-access scan node.
2. In the workspace, select the Exclusions from scan tab.
3. In the File masks list, select the check boxes next to file name masks to be excluded from the scan scope.
4. To add a mask to the list, open the Adding file mask window by clicking the Add button, and specify the mask in the entry field. To save the mask and close the window, click OK. The mask will be displayed in the File masks field.

   If you want to define several masks, use a semicolon as a delimiter.

5. To save the changes, click the Save button.

File mask

In the entry field, you can specify / change a file mask. Use a semicolon to separate multiple masks.

Content filtering rules

Show all | Hide all

On the Content Filtering rules tab, you can create content filtering rules (such as prohibition of some words and expressions, prohibition of some file names, and blocking of specific file formats on SharePoint websites). In accordance with those rules, the application tracks unsolicited data in SharePoint files and web objects.

The List of categories section displays a list of categories of unwanted words and phrases. The list of categories is divided into the following groups:

• Kaspersky Lab categories. Preset categories of unwanted words and phrases compiled by Kaspersky Lab experts.
• Custom categories. Categories of unwanted words and phrases created by the user manually in the Content filtering node.

Clicking the button next to a group of categories expands the list of categories included in that group. You can select the check boxes for categories that will be included in a rule for prohibition of some words and expressions. In accordance with the rule, the application scans SharePoint files and web objects for unwanted words and phrases belonging to the selected categories. When handling files that contain unwanted words and phrases, the application applies the action defined on the General tab.

All boxes are cleared by default.

The Unwanted file names section displays a list of file mask sets. You can create sets of file masks in the Content filtering node. You can select the check boxes for sets that will be included in a rule for prohibition of some file names on SharePoint. In accordance with the rule, the application checks if the names of files match the masks. When handling files that match the mask(s), the application applies the action defined on the General tab.

All boxes are cleared by default.

The Unwanted file formats section displays a list of file formats grouped by their type. Clicking the button next to the name of a group opens a list of file formats (or subgroups) included in that group.

You can select the check boxes for file formats that will be included in a rule for prohibition of specific file formats on SharePoint websites. When handling such files, the application performs the action that has been defined on the General tab.

All boxes are cleared by default.

Expand all

Minimize all

Configuring additional settings for on-access content filtering

You can configure additional settings for on-access Content filtering: specify prohibited file formats, masks of unwanted file names, unwanted words or phrases.

To specify prohibited file formats:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the On-access scan node.
2. In the workspace, select the Content Filtering rules tab.
3. In the Unwanted file formats list, select the check boxes next to unwanted file formats.

   Make a convenient use of the tree with the Expand all and Minimize all buttons.

4. To save the changes, click the Save button.

To specify the masks for unwanted file names:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the On-access scan node.
2. In the workspace, select the Content Filtering rules tab.
3. In the Unwanted file names list, select the check boxes next to unwanted file name masks.

   In the Content filtering node you can add and edit the sets of unwanted file name masks using the Filter by masks tab.

4. To save the changes, click the Save button.

To define unwanted words and phrases:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the On-access scan node.
2. In the workspace, select the Content Filtering rules tab.
3. In the List of categories list, select the check boxes next to categories of unwanted words and phrases.

   You can add and edit custom categories of unwanted words and expressions in the Content filtering node using the tab Filter by keywords.

4. To save the changes, click the Save button.

On-demand scan

Show all | Hide all

On-demand scanning allows you to scan all (or specific) files stored on SharePoint for viruses and unwanted content. The application runs scans through scan tasks. Each task covers specific SharePoint websites, defines the scan criteria and the application's actions on detection of a virus or unwanted content. You can run the scan task manually or set up the automatic run of the task upon a schedule. The application can run multiple on-demand scan tasks concurrently. The application runs scan tasks in background mode. The application generates a report with the results of each task.

In the workspace of the On-demand scan node, you can add scan tasks and configure them, run the scan, and view reports on the scan results.

Create

Start

Stop

Down

Change

Report

Delete

About on-demand scanning

On-demand scan is scanning of files on a SharePoint server, which is performed manually or according to a schedule created in advance.

Kaspersky Security performs on-demand scan on:

• files located on the SharePoint server and in areas of the SharePoint structure specified in the scan settings;
• all SharePoint web objects (such as wiki pages and forums hosted on the SharePoint server);
• SharePoint service files.

The application scans only the last versions of files and SharePoint web objects hosted on the SharePoint server.

During on-demand scanning, Kaspersky Security performs:

1. Performs anti-virus file scanning in accordance with the scan exclusions settings.
2. Searches for unwanted file formats and unwanted file names.
3. Scans files and SharePoint web objects for unwanted content.

If a file has been blocked by Content filtering, the application does not perform Anti-Virus scanning of this file. Alternatively, if a file has been blocked following an Anti-Virus scan, the application does not apply Content filtering to the file. In on-demand scan mode, the application always skips web objects that contain unwanted content even if the Block action is configured in task settings.

Status labels assigned to files based on scan results

Based on the results of Anti-Virus scanning, Kaspersky Security assigns one of the following status labels to the file:

• Not infected. No threats detected in the file.
• Infected. A file a segment of whose code fully matches a code segment of a known threat.
• Probably infected. A file whose code contains a modified segment of code of a known threat, or a file resembling a threat in the way it behaves.
• Password-protected. A password-protected archive.
• Corrupted. The file cannot be read by Kaspersky Security.

Based on the results of content filtering, Kaspersky Anti-Virus assigns one of the following status labels to the file:

• Allowed. There is no unwanted content in the file.
• Forbidden format. The file has an unwanted format.
• Forbidden mask. The file name contains an unwanted mask.
• Forbidden content. The file has been found to contain unwanted words and phrases.

Based on the results of content filtering, the application assigns one of the following status labels to the SharePoint web part:

• Allowed. The SharePoint web object does not contain unwanted content.
• Forbidden content. The SharePoint web object has been found to contain unwanted content.

On-demand scan tasks

To run on-demand scan tasks, you have to configure an on-demand scan task or tasks in Kaspersky Security. You can configure anti-virus scanning and content filtering settings for each on-demand scan task, and define a schedule.

On-demand scan tasks can be run manually or scheduled to run automatically. The application generates a report with the results of each scan task.

The list of on-demand scan tasks is displayed in a table in the workspace of the On-demand scan node. The on-demand scan tasks that were not run or could not be run at the scheduled time are highlighted in red. Color highlighting is not used for other tasks.

The reasons for not running the tasks are displayed in the Status column:

• Task server does not exist. Kaspersky Security Server has been deleted from the SharePoint server specified in the on-demand scan task settings. You can specify a different SharePoint server in the task settings.
• Task not executed. The SharePoint server specified in the on-demand scan task settings was not available at the time scheduled for the start of the task. The availability of the SharePoint server needs to be checked. You can run a task manually, if necessary.

Creating an on-demand scan task

To create an on-demand scan task:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the On-demand scan node.
2. Click the Create button in the workspace.

   This opens the Task settings window.

3. In the Task name field, enter the name of the task.
4. Configure restrictions for the newly created on-demand scan task:
   • If you want Kaspersky Security to move copies of files to Backup before processing, select the Move files to backup check box.
   • If you want to limit the duration of an on-demand scan task, select the Restrict the duration of task execution check box and specify a value in the field on the right.
   • If you want the application to scan SharePoint service files while performing the task, select the Scan service files check box.
   • If you want to limit the duration for a scan of each individual file, select the Scan timeout check box and enter a value (in seconds) in the field on the right.
   • If you want to run the task on a different SharePoint server, select the relevant SharePoint server in the Run task on server dropdown list.
5. In the Schedule section, set up a schedule for the on-demand scan task:
   • If you want to run the on-demand scan task manually at your convenience, select manually.
   • If you want the on-demand scan task to run once at the specified time, select Once and specify the date and time for task start.
   • If you want the on-demand scan task to run automatically every week, select Weekly and specify the days and time for task start.

     If the Once or Weekly option is selected, the application uses the time set on the SharePoint server where the task will be run.

6. If necessary, in the Anti-Virus scan section, select the Enable Anti-Virus scan check box and configure actions to be performed by the application on infected, potentially infected, password-protected, and corrupted files during the task run:
   1. In the Actions with infected and probably infected files dropdown list, select an action:
      • Disinfect. Kaspersky Security attempts to disinfect an infected or probably infected file. If the file cannot be disinfected, the application replaces it with a text file describing the reason for deletion.
      • Delete. Kaspersky Security replaces the infected or probably infected file with a text file describing the reason for deletion.
      • Skip. Kaspersky Security does not perform any operations on the infected or potentially infected file.

        After an infected file is deleted, Kaspersky Security also deletes all of its versions (regardless of whether they have been infected). We recommend that you save your files in Backup in order to avoid data losses.

   2. In the Actions with password-protected files dropdown list, select an action:
      • Delete. Kaspersky Security replaces the password-protected file with a text file describing the reason for deletion.
      • Skip. Kaspersky Security does not perform any action on the password-protected file.
   3. In the Actions with corrupted files dropdown list, select an action:
      • Delete. Kaspersky Security replaces a corrupted file with a text file describing the reason for deletion of the original file.
      • Skip. Kaspersky Security does not perform any action on the corrupted file.

        If the Skip option is selected, the application does not perform any operations on the file, but assigns it one of the status labels based on the scan results. The application records the file details in reports and statistics.

7. If necessary, select the Enable Content filtering check box and set the action to be performed on files with unwanted content by selecting one from the Actions with files that contain unwanted content dropdown list:
   • Delete. Kaspersky Security replaces a file with unwanted content with a text file describing the reason for deletion of the original file.

     If Kaspersky Security detects unwanted content in a SharePoint service file, it does not delete this file. The application records information about unwanted content in the SharePoint service file in the task report and the application log.

   • Skip. Kaspersky Security does not perform any action on the file containing unwanted content.

     If the Skip option is selected, the application does not perform any operations on the file, but assigns it one of the status labels based on the scan results. The application records the file details in reports and statistics.

8. If you want the application to scan SharePoint web objects (such as wiki pages and forums hosted on a SharePoint server) with Content Filtering, select the Scan SharePoint web content check box.

   If the Scan SharePoint web content check box is selected, the application scans SharePoint web objects for unwanted words or phrases included in Kaspersky Lab sections and custom categories whose settings are configured in the Content filtering node.

   On detecting unwanted content in a SharePoint web object, the application makes a corresponding record in the on-demand scan task report and the application log. Kaspersky Security does not delete the SharePoint web object or move it to Backup.

   For Content filtering to work properly, the Kaspersky Security account must have site collection administrator privileges (for all site collections) and administrator privileges for the SQL database containing the site collection.

9. Click the OK button.

   The task that has been created will be added to the list of tasks in the workspace of the On-demand scan node.

You can configure additional settings for an on-demand scan task:

• Select or exclude areas of the SharePoint structure from the scan scope.
• Exclude certain file types, file formats, or file name masks from Anti-Virus scanning, limit the per-file scan time, and disable scanning of archives.
• configure content filtering.

Starting and stopping on-demand scan tasks

To start an on-demand scan task:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the On-demand scan node.
2. Select an on-demand scan task from the list in the workspace.
3. Click the Start button to run the on-demand scan task, or click the Stop button to stop the task.

Viewing an on-demand scan task report

To view a report on the results of an on-demand scan task:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the On-demand scan node.
2. Select a task from the list in the workspace.
3. Click the Report button.

   The report is displayed in a new window of your web browser.

   The Report button is not available for tasks currently in progress and for tasks that have never been started.

The report contains the following information on the last on-demand scan:

• Used task settings:
  • task name;
  • task launch method (manual or scheduled);
  • scan task start and end times;
  • information about enabled application components;
  • name of the SharePoint where the task was performed;
  • task status;
• Scan results. Summarized information about the results of the on-demand scan task.
  • Processing errors. The number of files skipped by the application because of scanning errors.
  • Scanned items. Total number of scanned files.
  • Virus threats found. The number of malicious objects detected (the number Anti-Virus component incidents).
  • SharePoint web objects scan alarms. Number of detected files in an unwanted format and file names containing unwanted masks, as well as web objects with unwanted content (number of Content filtering incidents).
• Table of positives. A table with information about all files found to contain malicious objects or violations of Content filtering rules. If the scan has not detected any virus threats or violations of content filtering rules, the File scan detected no incidents message is displayed instead of the table of positives.
  • File name. The name and path to the file where malicious objects or violations of content filtering rules have been found.
  • Version. File version on the SharePoint server.
  • Action. Operation performed on the file based on the scan results in accordance with the defined settings.
  • Anti-Virus scan. Status assigned to the file by the anti-virus scanning component. This column shows the Corrupted or Password protected status label for corrupted or password-protected files. This column shows the name of the object detected in the file for infected or probably infected files.
  • Content filtering. Status assigned to the file by the content filtering. Policies whose violation triggered the content filtering component.
  • Backup. Information about creation of a backup copy for the file in Backup.
  • Restored version. The version to be assigned to the restored file (if it can be disinfected).
  • Incident ID. The universal ID of the positive. The incident ID simplifies the search for information about the incident in the report, Backup, and file log. It is also displayed in the properties of a backup copy of the file in Backup and in notifications about violations of security policies during on-demand scanning.
• SharePoint web objects scan alarms. A table with the details of SharePoint web objects found to contain unwanted words or phrases. If no unwanted words or phrases have been detected during a scan of SharePoint web objects, the SharePoint web objects scan detected no incidents message is displayed instead of this table.
  • Name and version. Name and version of a SharePoint web object found to contain unwanted words or phrases included in Kaspersky Lab sections and user categories within the search scope configured in the Content filtering settings. The name consists of: <Site name> / <List name> / <Object ID>. The field contains n/a if the version information of the scanned SharePoint web object is unavailable.
  • Categorized as. List of SharePoint web object fields found to contain unwanted words or phrases, and categories to which the detected words and phrases belong.
  • Incident ID. The universal ID of the positive. The incident ID simplifies the search for information about the incident in the report and log file.
• Table of locations to scan. The list of all scan areas specified in the on-demand scan task settings.

Deleting an on-demand scan task

To delete an on-demand scan task:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the On-demand scan node.
2. In the workspace, select the task that you want to remove and click the Delete button.

Task settings – General

Show all | Hide all

On the General tab, you can define the general settings of the task (e.g., select a SharePoint server for scanning), set up the task run mode and the mode of anti-virus scanning and content filtering during the task run. You can set up different modes of anti-virus scanning and content filtering for various tasks.

Task name

Move files to backup

Restrict the duration of task execution

Run task on server

Scan service files

Scan timeout

In the Schedule section, you can select the task run mode (manual or automatic) and set up the schedule of automatic scan run.

Manually

Once

Weekly

In the Anti-Virus scan section, you can enable the anti-virus scanning and set up rules for processing objects with an anti-virus scan.

Enable Anti-Virus scan

Actions with infected and probably infected files

Actions with password-protected files

Actions with corrupted files

The Content filtering section allows enabling content filtering, as well as configuring the application's actions on files with unwanted content.

Enable Content filtering

Actions with files that contain unwanted content

Scan SharePoint web content

Task settings – Scan scope

Show all | Hide all

On the Scan scope tab, you can select SharePoint websites that the application will scan when running the task.

The Select areas of the SharePoint structure to scan section shows a list of websites hosted on the protected SharePoint server. You can create a scan scope by selecting the check boxes for certain websites or their websites.

Select child items

Deselect child items

In the Additional web addresses section, you can add SharePoint web addresses to the scan scope manually, as well as configure exclusions from the scan scope. In the dropdown list on the right of the web address that has been added, you can specify the action that the application will take on that address:

• Exclude. The address will be excluded from the scan scope.
• Include. The address will be added to the scan scope.

Add

Delete

Web address

In this entry field, you can specify the SharePoint web address for which you want to set up specific scanning conditions. The application supports the following syntax of web addresses:

• https://<SharePoint portal name>.local:8080/content/file.txt
• http://<SharePoint portal name>.local/content/;
• http://<SharePoint portal name>/.

Selecting and excluding from on-demand scanning areas of the SharePoint structure

You can specify areas of the SharePoint structure to be scanned during an on-demand scan task. You can also exclude individual areas of the SharePoint structure from scanning.

To define the scan scope in a SharePoint structure:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the On-demand scan node.
2. In the list of tasks displayed in the workspace, select the on-demand scan task that you want to modify. Click the Change button to open the Task settings window on the Scan scope tab.
3. Specify the scan scope in the SharePoint structure in one of the following ways:
   • In the SharePoint server structure tree, select check boxes corresponding to the SharePoint structure areas that you want to include in the scan scope. All check boxes are selected by default (all available SharePoint structure areas are scanned during the on-demand scan task).

     The tree only displays the SharePoint structure areas, for which administrator access is allowed to the account used to start the application services.

   • Add SharePoint structure areas manually. To do this, in the Additional web addresses section, perform the following actions:
     1. Click the Add button. In the window that opens, enter the path to the area that you want to add and click OK.

        The following types of paths are supported:

        • http://<SharePoint portal name>.local/content/;
        • https://<SharePoint portal name>.local:8080/content/file.txt;
        • http://<SharePoint portal name>/.

        To remove an area, select one in the list and click the Delete button.

     2. Select the check box opposite the path to a SharePoint structure area, and select Include in the drop-down list.
     3. Clear the check box opposite the path to a SharePoint structure area, and select Exclude in the drop-down list.
4. Click OK to save the changes and close the window.

To exclude SharePoint structure areas from an on-demand scan:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the On-demand scan node.
2. In the list of tasks displayed in the workspace, select the on-demand scan task that you want to modify. Click the Change button to open the Task settings window on the Scan scope tab.
3. Exclude a SharePoint structure area from scanning in one of the following ways:
   • In the SharePoint server structure tree, clear the check boxes corresponding to the areas which you want to exclude from the scan scope.
   • In the Additional web addresses section, select the Exclude action in the dropdown lists for the areas that you want to exclude from scanning.
4. Click OK to save the changes and close the window.

Task settings – Exclusions from scan

Show all | Hide all

On the Exclusions from scan tab, you can define the settings for exclusion of files from scanning.

The File formats section displays a list of file formats grouped by type (executable files, data, multimedia, images, archives). Clicking the button next to the name of a group opens a list of file formats (or subgroups) included in that group.

You can configure exclusions from scanning by selecting the check boxes next to relevant groups, subgroups, and specific file formats. The anti-virus scan settings will not be applied to files of selected formats. When running the task, the application will not scan files of specified formats.

All boxes are cleared by default.

Expand all

Minimize all

In the File masks section, you can create a list of file masks, as well as select file masks that will be used to exclude files from scanning.

If the check box is selected next to a mask, the application will not scan files matching that mask when running the task.

Add

Change

Delete

File mask

In this entry field, you can add or edit one or several file masks. If you enter multiple file masks in the field, use semicolons to separate them (e.g., test; win*; img).

Creating on-demand Anti-Virus scan exclusions

To ease the load on the SharePoint server, you can exclude files from the scope of on-demand Anti-Virus scanning specific formats or file name masks, restrict scanning duration for individual files, as well as disable scanning of archives.

To exclude specific file formats from on-demand anti-virus scanning:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the On-demand scan node.
2. In the list of tasks displayed in the workspace, select the on-demand scan task that you want to modify. Click the Change button to open the Task settings window, then select the Exclusions from scan tab.
3. In the File formats list, select the check boxes next to the file formats that you want to exclude from scanning.

   Make a convenient use of the tree with the Expand all and Minimize all buttons.

4. To save the changes and close the window, click OK.

To exclude files that match specific masks from on-demand Anti-Virus scanning:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the On-demand scan node.
2. In the list of tasks displayed in the workspace, select the on-demand scan task that you want to modify. Click the Change button to open the Task settings window and select the File formats tab.
3. In the File masks list, select the check boxes next to file name masks to be excluded from the scan scope.
4. To add a mask to the list, open the Adding file mask window by clicking the Add button, and specify the mask in the entry field.

   If you want to define several masks at once, use a semicolon as a separator.

5. To save the changes and close the window, click OK.

Task settings – Content filtering rules

Show all | Hide all

On the Content Filtering rules tab, you can create content filtering rules (such as prohibition of some words and expressions, prohibition of some file names, and blocking of specific file formats on SharePoint websites). In accordance with those rules, the application scans SharePoint files and web objects for unwanted information.

The List of categories section displays a list of categories of unwanted words and phrases. The list of categories is divided into the following groups:

• Kaspersky Lab categories. Preset categories of unwanted words and phrases compiled by Kaspersky Lab experts.
• Custom categories. Categories of unwanted words and phrases created by the user manually in the Content filtering node.

Clicking the button next to a group of categories expands the list of categories included in that group. You can select the check boxes for categories that will be included in a rule for prohibition of some words and expressions. In accordance with the rule, the application scans SharePoint files and web objects for unwanted words and phrases belonging to the selected categories. When handling files that contain unwanted words and phrases, the application applies the action defined on the General tab.

All boxes are cleared by default.

The Unwanted file names section displays a list of file mask sets. You can create sets of file masks in the Content filtering node. You can select the check boxes for sets that will be included in a rule for prohibition of some file names on SharePoint. In accordance with the rule, the application checks if the names of files match the masks. When handling files that match the mask(s), the application applies the action defined on the General tab.

All boxes are cleared by default.

The Unwanted file formats section displays a list of file formats grouped by their type. Clicking the button next to the name of a group opens a list of file formats (or subgroups) included in that group.

You can select the check boxes for file formats that will be included in a rule for prohibition of specific file formats on SharePoint websites. When handling such files, the application performs the action that has been defined on the General tab.

All boxes are cleared by default.

Expand all

Minimize all

Configuring content filtering

For on-demand scan tasks, you can configure the application to look for specific file formats, file name masks, and the categories of unwanted words and phrases.

To configure Content Filtering rules for an on-demand scan:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the On-demand scan node.
2. In the list of tasks displayed in the workspace, select the on-demand scan task that you want to modify. Click the Change button to open the Task settings window and select the Content Filtering rules tab.
3. Configure the following Content filtering settings:
   • In the List of categories, select the check boxes next to the categories of Kaspersky Lab and user categories, which the application should seek while running the on-demand scan task.
   • In the Formats list, select check boxes next to the file formats that should be scanned. To expand / collapse the entire list of formats and extensions, use the Expand all and Minimize all button.
   • In the Mask sets list, select check boxes next to the sets of file name masks to be scanned during on-demand scanning.
4. To save the changes and close the window, click OK.

You can specify the file formats and file name masks and the set of categories of unwanted words and phrases in the Content filtering node.

Content filtering

In the Content filtering node, you can view and edit the settings for the content filtering. The application will use those settings to scan files, websites, and web objects for unwanted content.

About content filtering

Kaspersky Security performs content filtering of files placed on the SharePoint server during on-access scanning and on-demand scanning.

Content is filtered by:

• File format.
• File name mask. You can specify masks for unwanted file names and formats.
• By the text content and names of the files. Kaspersky Security includes a preset collection of categories of unwanted words and phrases created by the experts at Kaspersky Lab. The preset collection of unwanted words and phrases cannot be modified nor updated. You can create custom categories of unwanted words and phrases.

File content is scanned using the libraries of filters via the IFilter interface. To enable or disable filters available on a server, you can use IFilter utility, which is installed along with Kaspersky Security.

More details about IFilter can be found at http://msdn.microsoft.com/en-us/library/ms691105%28v=vs.85%29.aspx.

When the application is installed, filters included in following standard filter packs are enabled by default:

• Windows Server (installed with the operating system).
• SharePoint (installed with the SharePoint server).
• Office 2007 Filter Pack
• Office 2010 Filter Pack

If other filters are installed on the SharePoint server, they are disabled by default and content filtering by format is not performed for files scanned using these filters. Use Kaspersky IFilter Utility to enable such filters.

You can enable / disable the installed filters and also install necessary additional filters using utility.

You can start the utility from the menu Start → Programs → Kaspersky Security 9.0 for SharePoint Server → Kaspersky IFilter Utility.

For more details on the Kaspersky IFilter Utility, please refer to the corresponding Help file.

About the white list

The while list is a list of words and / or phrases that should be skipped by Content filtering.

The white list contains words and / or phrases that, although included in prohibited categories of Kaspersky Lab, should be ignored by Content Filtering. By using the white list, it is possible to avoid false positives of the application component on detecting words and / or phrases that are permissible in and specific to the field of the company's business.

The white list is local. It is created separately for each farm server. When a word and / or phrase is included in the white list, all of its word forms should be specified for the application component to work properly.

Changes made to the list are applied with a delay of no more than 5 seconds.

Creating the white list

To create a white list of permissible words and / or phrases:

1. Open the folder with SharePoint server configuration files by performing the following:
   • If the application is installed on a farm of SharePoint servers, open the application setup folder and go to the folder of the corresponding farm server. Then open the Configuration folder.
   • If the application is installed on a standalone SharePoint server, open the application setup folder and go to the Configuration folder.
2. Create an XML file with the name ContentFilteringWhitelist.

   The ContentFilteringWhitelist.config file must have the following structure:

   <?xml version="1.0" encoding="utf-16"?>

   <configuration version="1.0">

   <ContentFilteringWhitelistSubset xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema">

   <Items>

   <string></string>

   </Items>

   </ContentFilteringWhitelistSubset>

   </configuration>

3. Type the word or phrase to be skipped by Content filtering between the <string> and </string> tags.

   Type each new word or phrase and their word forms in a new line between the <string> and </string> tags.

4. Save changes to the file in Unicode format.

When saving the file in a different format, words and / or phrases containing language-specific characters may be displayed improperly.

Filter by keywords tab

Show all | Hide all

The List of categories section displays a list of categories that the application uses to recognize unwanted information in files and on websites. In this section, you can create a list of categories. Clicking the name of a category in the Category structure section displays detailed information about the selected category.

Create

Rename

Delete

Import from file

In the Category structure section, you can define a set of user categories. The Keyword field shows words and phrases in this category. The case sensitivity of a term is shown on the right of that term.

Add

Change

Delete

Category name

In this entry field, you can specify / edit the name of a user category.

Keyword settings

Show all | Hide all

In the entry field, you can specify a word and / or word combination. Use the semicolon to separate words or word combinations. Term length may not exceed 512 characters.

Case-sensitive

Creating, renaming, and deleting user categories of unwanted words and phrases

To create a new user category of unwanted words and phrases:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Content filtering node.
2. In the workspace, select the Filter by keywords tab and click the Create button in the List of categories section.
3. In the Category name window that opens, enter a name for the new category.
4. Click the OK button.

To rename a user category of unwanted words and phrases:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Content filtering node.
2. In the workspace, click the Filter by keywords tab, select the category that you want to rename, and click the Rename button.
3. In the Category name window that opens, enter the name of the category and click OK.

To delete a category for unwanted words and phrases:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Content filtering node.
2. In the workspace, click the Filter by keywords tab, in the List of categories section, select the category that you want to delete, and click the Delete button. Selected category will be removed from the list.

   Only user categories can be created, renamed or deleted. You cannot change the preset collection of Kaspersky Lab categories included in the application.

Importing a list of unwanted words and phrases into a user category from a text file

You can import from a text file a list of unwanted words and phrases into a user category.

The words and phrases in such file must comply with the following conditions:

• Each line must contain just one term with its word forms.
• The term should be separated from its word forms with the "|" character.
• Term length may not exceed 127 characters.

  If a term contains special symbols or multibyte characters, for example, UTF-8 (encoded using three or more bytes), the term length must not exceed 64 characters.

To import a list of unwanted words and phrases into a user category:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Content filtering node.
2. In the workspace, select the Filter by keywords tab, and in the List of categories field, select the category to which you want to import the list.
3. In the List of categories field, click the Import from file button. In the displayed window specify the path to the necessary file.

   The Import from file button is only available for custom categories of unwanted words and phrases.

4. To save the changes, click the Save button.

Adding, changing, and deleting unwanted words and phrases in user categories

To add an unwanted word or phrase to a user category:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Content filtering node.
2. In the workspace, click the Filter by keywords tab, and in the List of categories field, select the custom category to which you want to add a word or phrase.
3. In the Category structure field, click the Add button. Type the word or phrase in the field within the displayed dialog.
4. If you want the application to consider case while searching for a word or phrase, select the Case-sensitive check box.
5. Click the OK button.

   You can specify several words or phrases. Use the "|" character as a delimiter.

To edit a word or phrase within a selected user category:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Content filtering node.
2. In the workspace, click the Filter by keywords tab, and in the List of categories field, select the custom category containing the word or phrase that you want to edit.
3. In the Category structure field, select the word or phrase that you want to edit, and click the Change button.
4. Edit the word or phrase in the displayed window. If necessary, select the Case-sensitive to enable case sensitivity.
5. Click the OK button.

To delete a word or phrase from a selected user category:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Content filtering node.
2. In the workspace, select the Filter by keywords tab, and in the List of categories field, select the custom category containing the word or phrase that you want to delete.

   You can select several words of phrases in the list while holding the SHIFT key pressed.

3. In the Category structure field, select the word or phrase that you want to delete, and click the Delete button.

   Only user categories can be created, edited or deleted. You cannot change the preset collection of Kaspersky Lab categories included in the application.

Filter by masks tab

Show all | Hide all

The Mask sets section shows a list of mask sets that the application uses to recognize unwanted file names. In this section, you can add and edit sets.

Add

Rename

Delete

The Masks in set section displays the file masks contained in the selected set. In this section, you can compile a set of file masks.

Add

Change

Delete

Set name

In this entry field, you can specify / change the name of a set of masks.

File mask

In the entry field, you can specify / change a file mask. When specifying file name masks, you must follow the file name mask creation rules. Use a semicolon to separate multiple masks.

Creating, renaming, and deleting a set of masks for unwanted file names

To create a new set of forbidden file name masks:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Content filtering node.
2. In the workspace, on the Filter by masks tab, click the Add button. This opens the Set name window.
3. Enter in the displayed dialog the name for the new set of masks.
4. Click the OK button.

To rename a set of masks for unwanted file names:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Content filtering node.
2. In the workspace, on the Filter by masks tab, select the set of masks that you want to rename, and click the Rename button.
3. Enter the new name for the set of masks in the window that opens, and click OK.

To delete a set of unwanted file name masks:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Content filtering node.
2. In the workspace, on the Filter by masks tab, select the set of masks that you want to delete, and click the Delete button.

File name mask creation rules

Please follow these guidelines on creating masks:

• The following wildcards are supported:
  • * – an arbitrary string of characters. For example, the "abc*" mask stands for any file with the name beginning with the "abc" string: abc.exe, abc1.com, abc2.rar.
  • ? – any single character. For example, the "abc?.exe" mask stands for any file with the name beginning with the "abc" string followed with an arbitrary single character, like abc1.exe. However, the file abc12345.exe will not match the mask.
• Observe the following restrictions:
  • Masks cannot contain the following characters: >, <, \, /, |, ", ;.
  • It is not recommended to use masks that match the file extensions of SharePoint service files (for example, *.aspx, *.html, *.mht) in the content filtering settings. Deleting SharePoint service files could disrupt the operation of SharePoint.

Changing a set of unwanted file name masks

To add an unwanted file name mask to a set:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Content filtering node.
2. In the workspace, select the Filter by masks tab, and in the Mask sets field, select the set to which you want to add a mask.
3. In the Masks in set field, click the Add button. In the window that opens, specify the mask of the unwanted file name in the field.

   You can specify several masks. Use a semicolon as a delimiter.

To edit the unwanted file name masks in a set:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Content filtering node.
2. In the workspace, click the Filter by masks tab, and in the Mask sets field, select the set in which you want to edit masks.
3. In the Masks in set field, select the mask that you want to edit, and click the Edit button.
4. In the window that opens, edit the mask and click OK.

To delete an unwanted file name mask from a set:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Content filtering node.
2. In the workspace, click the Filter by masks tab, and in the Mask sets field, select the set from which you want to delete masks.

   You can select several masks in the set while holding the SHIFT key pressed.

3. In the Masks in set field, select the mask that you want to delete, and click the Delete button.

   If multiple masks have been selected within a set, you can only delete the selected masks. No other operations with them will be available.

Backup

Show all | Hide all

The Backup node lets you view information about malicious objects detected by the application.

Backup

The upper part of the workspace displays the Quick search entry field. Here you can specify the name of an object (or a mask) that must be found in Backup. Clicking the button on the right of the entry field opens the block of advanced search settings. The drop-down lists on the left let you select an object filtering criterion. Details of the object or users related to it are used as filtering criteria. In the next dropdown list, you can specify the rate of the match between the criterion and the value. In the entry field on the right, you can specify a value for the selected criterion.

By default, the block contains three filtering conditions. You can add several conditions to configure object filtering flexibly. The application performs filtering according to all conditions added to the advanced search settings.

Add a condition

Reset filter

A table with information about Backup objects follows. For your convenience, you can set up the appearance of the table and sort objects by any of the columns that are displayed at the time of sorting.

Delete

Restore

Save to disk

Select columns

Clear

Export to CSV

In the bottom part of the workspace, you can view the object's details. Clicking the button opens a section with the details of the object that has been selected in the table.

About Backup

Kaspersky Security saves in Backup copies of files that require action based on the results of Anti-Virus scanning and / or Content filtering (such as blocking or deletion). The application places in Backup copies of all harmful files, whether they can be disinfected or not.

Kaspersky Security places files to the Backup storage in encrypted form, which prevents the infection risk (files in Backup storage are not accessible without decryption).

Backup size

The data volume that can be stored in the Backup may be restricted by one of the two following parameters:

• Total number of files in Backup cannot exceed 50000. You cannot remove or change this restriction.
• The default size of Backup is 3686 MB. You can change the size of Backup.

Removing files from Backup

The application periodically (every time a new file is placed in Backup) checks compliance with the set restrictions on the size of Backup.

If the restrictions are exceeded, the application:

• Stops placing files in Backup, if the number of files in storage is exceeded.
• Frees up the necessary disk space by deleting the oldest files, if the restriction on storage size is exceeded by the addition of another file. The files stored for the longest amount of time are deleted first.

You can also delete files from Backup manually. For example, you may need to delete files that have been successfully restored after disinfection, or delete all files to purge Backup.

Viewing the list of files in Backup

You can view the list of files in Backup; it is displayed as a table with corresponding column headers.

To view the list of files in Backup:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Backup node.

   The workspace displays information about Backup and a list of files moved to Backup.

   The top right corner of the workspace displays the number of files moved to Backup and the total size of these files.

   The bottom right corner of the workspace displays the following information:

   • The range of lines in the table listing files.
   • The number of lines in the table listing files.
   • The page number of the files list.

   In the files list you can view the information about files stored in Backup. The appearance of the files list may differ depending on the columns selected for display.

   By default, the list contains the following file information:

   • File name. File name.
   • Path to file. The path to the original location of the file on the server.
   • Account. Account of the user who had performed the operation that resulted in file addition to Backup.
   • Restored. Date and time of file restoration on server.
   • Detected. Date and time of object detection in file.
   • Component. The module, that scanned the file - anti-virus scan or content filtering.
   • Reason why moved to Backup. Name of the object detected in the file.
   • Scan type. The type of scan which detected the object – on-demand or on-access scan.
2. Configure the appearance of the files list (if necessary) by selecting the columns to be displayed in the table:
   1. Click the Select columns button.

      This opens the Select columns to display window.

      The columns in the table of files will appear and disappear as you select or clear their corresponding check boxes.

      The File name column is always displayed. It cannot be hidden.

   2. Click outside the Select columns window to close it.
3. You can sort the files list in the table by any of the columns in ascending or descending order, as required. To do this, click the header of the column that you want to sort files by, for example, File name, Path to file, or Component. If you want to reverse the sorting order, click the header once again.

   The list of files will be sorted by the selected column. The sorting symbol will appear in the header of the selected column:

   • – sorted in ascending order
   • – sorted in descending order

To view the details of a specific file, select it in the file list using the buttons to navigate to the next / previous, first / last pages of the file list. To find files in the list, you can also use the quick search and extended filter functions.

Quick file search in Backup

To quick-search files in Backup:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Backup node.

   The workspace displays a list of files moved to Backup.

2. Enter the pattern string for file search in the Quick search field. The pattern string supports masks.

   Quick search begins acting immediately as soon as you enter the template string.

   The table lists only files that match the search condition. A file will match the search condition if the entered pattern string can be found in at least one of the following file properties:

   • File name
   • Path to file
   • Account
   • Owner
   • Owner email
   • Last edit by
   • Last editor email
   • ID.

If you want to cancel quick search, click the icon next to the Quick search field.

Extended file search in Backup

To find files in Backup using the extended filter:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Backup node.

   The results window will display the list of files stored in Backup.

2. Click the icon to maximize the extended filter section.

   The extended filter section will be displayed. The section contains the list of filter conditions. By default, the list contains three lines where you can specify the conditions that will be used to filter document copies. Each filter condition consists of three parts: the file property to check, the pattern string and the comparison rule applied while matching the property and the pattern string.

3. To define a filtration condition:
   1. Select the property to check from the drop-down list in the left part of the line.

      You can pick any of the following values as the property to check:

      • File name
      • Path to file
      • User name
      • Account
      • ID
      • Owner
      • Owner email
      • Last edit by
      • Last editor email
      • Scan type.
   2. Select the comparison rule from the drop-down list in the middle of the line.

      The set of values in the list will correspond to the selected value of the property to check. For example, when checking the File name property, the list contains the following values: Includes, Does not include, Empty field.

      If you have selected Empty field, the entry field in the right part of the line will become inactive.

   3. Enter the template string in the entry field in the right part of the line. The pattern string supports masks.

      Specified filter condition will be applied to the list of files in Backup immediately as soon as you specify all its three parts. The files list only displays files matching all specified filtering conditions.

4. If you need to define more than three filter conditions, you can append additional lines to the list of conditions. To do this, click the Add a condition button.

   A new line will appear in the lower part of the filter conditions section.

5. If you want to delete an additional filter condition, click the  icon in the filtering condition line.

   The selected line will be deleted from the list of filter conditions. The list of files will be refreshed to match the remaining filter conditions.

For convenience, you can minimize the extended filter section by clicking the icon. Minimized extended filter will continue to function. If you want to cancel extended filtering, click the Reset filter link.

Restoring files from Backup

To restore files from Backup:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Backup node.

   The workspace displays a list of files moved to Backup.

2. Select the files that you want to restore in the table.

   Restoring files containing viruses and malicious objects can cause the computer to be infected.

3. Click the Restore button.

   Selected files will be decrypted and restored to the original locations in SharePoint structure. The files will be restored in the same format and under the same names they had when they were added to Backup.

   While restoring objects, the application updates in SharePoint the following relevant information:

   • Account. The application records to the field the account name of its administrator.
   • Comment. The application records in this field the application name, date when an object was placed in Backup and file version.
   • Version. The application updates the file version.

   After file restoration its copy and relevant information remains in Backup.

Rules for restoring files when version control is enabled in SharePoint

When files are being restored from Backup, it is possible that the path specified in SharePoint points to a file of the same name. Restoration of files of the same name depends on version control settings configured on the SharePoint server.

The following version control options exist:

• Major. File versions are available to all users of the SharePoint server.
• Minor. File versions are available to a limited group of users.

Restoring a file of the same name with version control enabled

If there is no file of the same name in SharePoint, the application restores the object from Backup as a file with the first minor or major version, depending on the version of the file when a copy of it was placed in Backup. If major version control is enabled in SharePoint, the file will be restored as a file with the corresponding major version.

If there is a file of the same name in SharePoint, Kaspersky Security restores the file according to the following rules:

• Kaspersky Security restores the new minor version if minor/major version control is enabled in SharePoint and the file in Backup has a minor version.
• Kaspersky Security restores the new major version in all other cases.

If the file being restored has no version, the application restores the file as a file with a new minor version (if minor/major version control is enabled in SharePoint), or as a file with a new major version (if major version control is enabled).

Restoring a file of the same name with version control disabled

In this instance, Kaspersky Security prompts you to replace the file of the same name with the file being restored.

You can select one of the following actions in the window with the prompt to replace the file:

• Yes. The file in SharePoint is replaced with the file being restored.
• No. The file in SharePoint is not replaced with the file being restored. In this case, the file being restored remains in Backup.

When several files are being restored from Backup and there is a file of the same name of at least one of them in SharePoint, Kaspersky Security prompts you to replace the file / files of the same name with the file / files being restored.

You can select one of the following actions in the window with the prompt to replace the file / files:

• Yes, restore the file. The file in SharePoint will be replaced with the restored file.
• No, do not restore the file. The file in SharePoint will not be replaced with the restored file.

Saving files from Backup to disk

To save files in Backup to disk:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Backup node.

   The results window will display the list of files stored in Backup.

2. If you want to save a single file to disk:
   1. Select in the files list the file, which you want to save to disk. You may use quick search or extended filter to find the file.
   2. Click the Save button.

      The standard file saving dialog will appear.

   3. Select the destination folder for the file.
   4. If you want to save the file under a different name, enter one in the File name field.
   5. Click the Save button.

      Selected file will be saved in the destination folder.

3. If you want to several files to disk:
   1. Select in the list the files, which you want to save to disk. You may use quick search or extended filter to find the files.
   2. Click the Save button.

      The standard destination selection dialog will appear.

   3. Select the destination folder where you want to save the files and click Save.

   Selected files will be saved in the destination folder.

Removing files from Backup

To delete files from Backup:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Backup node.

   The results window will display the list of files stored in Backup.

2. Select in the list the files, which you want to delete. You may use quick search or extended filter to find the files.

   Kaspersky Security permanently removes files from Backup.

3. Click the Delete button.

   A warning dialog will appear.

4. Click the Yes button.

   Selected files will be deleted from Backup.

Purging Backup manually

You can purge Backup by deleting all the objects inside it.

To purge the Backup:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Backup node.
2. In the workspace, click the Purge Backup button below the list of files moved to Backup.

   The application permanently deletes all files in Backup.

Configuring automatic Backup purging

To configure automatic Backup purging:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Settings node.
2. Select the Clear Backup automatically if its size exceeds check box.
3. Enter in the entry field maximum Backup size (MB).

   Supported parameter values are 1 –1048576 MB. If there is a storage size restriction and the addition of a new file exceeds this restriction, the application frees up the necessary space by deleting the oldest files. The default size of Backup is 3686 MB.

4. To save the changes, click the Save button in the upper part of the application window.

Updates

In the Updates node, you can configure the updating of databases.

In this node, the General and Updates on servers tabs can be displayed, depending on the schemes for deployment of Kaspersky Security on the organization's network. The Updates on servers tab is displayed if Kaspersky Security is installed on a farm of SharePoint servers that handle a single database of application configuration and Backup.

About database updates

Kaspersky Security database updates keep SharePoint servers protected against new viruses and other threats. Databases contain the latest information about threats and ways to neutralize them.

Databases contain descriptions of all malicious programs known to date and ways of disinfecting objects that have been corrupted by malware, as well as descriptions of programs that may be used by criminals to do harm to the user's computer or data.

While updating the databases, the application does not update the set of Kaspersky Lab categories.

It is important to keep all databases up to date. You are advised to update the databases as soon as you install the application because the databases included in the distribution kit will already be out of date. The databases on Kaspersky Lab's update servers are updated every hour.

Databases can be updated from the following sources:

• Kaspersky Lab's update servers on the Internet
• Local updates source, such as a local or a network folder
• Another HTTP or FTP server, such as your Intranet server

The updating is performed either manually or automatically, according to a schedule. After the files are copied from the specified update source, the application automatically connects to the new databases.

For added protection of SharePoint files, you can use Kaspersky Security Network services in addition to database updates. These services provide up-to-date information about threats and malware before it appears in Anti-Virus and Anti-Phishing databases.

During setup on several SharePoint farm servers, you can define local update settings for each individual server or propagate the global update settings to all servers.

Updates – General

Show all | Hide all

The Database update section displays information about the number of records in the databases, as well as their respective release dates. If the databases are outdated, this section displays a notification stating that the databases need to be updated. This section is displayed in the local settings of the Server if Kaspersky Security is installed on a farm of SharePoint servers that handle a single database for configuration of the application and Backup.

In the General settings section, you can specify the source from which the application will download updates, as well as set up the update run mode and schedule.

Kaspersky Lab's servers

HTTP server, FTP server, local or network folder

Run mode

Start update

In the Connection settings section, you can define the proxy server settings for updates downloading.

Proxy server address

Use authentication

Use proxy server

Maximum connection timeout

Configuring automatic database updates

To configure automatic database updates:

1. Select and open in the Management Console tree the Control Center (<Server name>) node corresponding to the relevant SharePoint server. Then select the Updates node.
2. In the workspace, click the General tab, and in the Updates on servers section, select an update source for the databases:
   • Kaspersky Lab's servers to download updates from Kaspersky Lab servers.
   • HTTP server, FTP server, local or network folder to download updates from some of the listed update sources.

     If you select this option, specify in the corresponding text box the server address, local or network folder.

   If Kaspersky Security is installed on a standalone SharePoint server, the update source is selected in the Updates on servers section of the workspace, which appears on selecting the Updates node in the Management Console tree.

3. The Run mode dropdown list allows you to set up a schedule for updates of the databases:
   • Manually. The update starts when you click the Start database update on all servers button.
   • Periodically. The update starts at the specified intervals.
   • Daily. The update starts at the specified time (the local time of the SharePoint server is used).
   • On selected day. The update starts on the specified days of the week.

   If Kaspersky Security is installed on a standalone SharePoint server, the run mode for automatic updates of databases is configured in the Database update settings section of the workspace, not on the tab.

4. In the Connection settings section, specify the required connection settings:
   • If you connect to the Internet using a proxy server, select the Use proxy server check box and specify the proxy server address and number of the port used for connection. The default proxy server port number is 8080.
   • If the proxy server requires authentication, specify the name and password of the user account. To do this, select the Use authentication check box and fill in the Account and Password fields.
   • Specify the timeout duration in the Connection timeout entry field. By default, the timeout is set to 60 seconds.

     This proxy server is used to exchange information with KSN cloud services if KSN protection is enabled.

   If Kaspersky Security is installed on a standalone SharePoint server, connection settings should be defined in the Connection settings section of the workspace displayed when you select the Updates node in the console tree.

5. Click the Save button.

Updates – Database update settings

Show all | Hide all

The Updates on servers tab displays a table, which lists Servers included in the farm. You can define the local settings for updates of the databases on each of those Servers, or use shared settings for all of them.

Start update

Modify local settings

Propagate global settings

Start database update on all servers

Configuring the local database update settings on SharePoint servers of the farm

To configure the local database update settings on a SharePoint server within a farm:

1. Select and open in the Management Console tree the Control Center (<Server name>) node corresponding to the relevant SharePoint server. Then select the Updates node.
2. In the workspace, click the Updates on servers tab, select the required server in the table, and click the Modify local settings button.
3. In the Server settings window that opens, in the General settings section, select a source of updates:
   • Kaspersky Lab's servers to download updates from Kaspersky Lab servers.
   • HTTP server, FTP server, local or network folder to download updates from some of the listed update sources.

     If you select this option, enter the server address, local or network folder in the entry field.

4. In the Database update settings section, in the Run mode dropdown list, set up a schedule for updates of the databases:
   • Manually. The update starts when you click the Start update button.
   • Periodically. The update starts at the specified intervals.
   • Daily. The update starts at the specified time (the local time of the SharePoint server is used).
   • On selected day. The update starts on the specified days of the week.
5. In the Connection settings section, define the connection settings:
   • If you connect to the Internet via a proxy server, select the Use proxy server check box and specify the proxy server address and number of the port used for connection. The default proxy server port number is 8080.
   • If the proxy server requires authentication, specify the name and password of the user account. To do this, select the Use authentication check box and fill in the Account and Password fields.
   • Specify the timeout duration in the Maximum connection timeout entry field. By default, the timeout is set to 60 seconds.
6. Click the Save button.

SharePoint server database update settings

Show all | Hide all

The Database update section displays information about the number of records in the databases, as well as their respective release dates. If the databases are outdated, this section displays a notification stating that the databases need to be updated. This section is displayed in the local settings of the Server if Kaspersky Security is installed on a farm of SharePoint servers that handle a single database for configuration of the application and Backup.

In the General settings section, you can specify the source from which the application will download updates, as well as set up the update run mode and schedule.

Kaspersky Lab's servers

HTTP server, FTP server, local or network folder

Run mode

The Connection settings section allows specifying the address of the proxy server through which an Internet connection will be established and configure the connection via the proxy server.

Proxy server address

Use authentication

Use proxy server

Maximum connection timeout

Viewing the information about updates to the anti-virus database

To view the information about database updates:

1. Select and open in the Management Console tree the Control Center (<Server name>) node corresponding to the relevant SharePoint server. Then select the Updates node.
2. In the workspace, open the Updates on servers tab.

   You will see a table with information about database updates on each SharePoint farm server. The table contains the following columns:

   • Server name. Server within a SharePoint farm, on which Kaspersky Security is installed.
   • Status of the last database update. The result of the last database update.
   • Database release date (UTC). The time when databases currently used by the application were published on Kaspersky Lab servers.
   • Time of last database update. The time of the latest database update on the server.
   • Settings. Update settings used on the server (local or global).

If Kaspersky Security is installed on a standalone SharePoint server, update-related information is displayed in the workspace of the Update settings section, not on the Updates on servers tab.

Updating databases manually

You can start the database update procedure on all servers of the farm or on a few selected ones.

To update the database on all servers manually:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Updates node.
2. In the workspace, go to the General tab, and, in the General settings configuration section, click the Start database update on all servers button.

To update the database on several selected servers manually:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Updates node.
2. In the workspace, open the Updates on servers tab.
3. Select the servers in the table and click the Start update@ button.

Propagating global database update settings to SharePoint farm servers

To apply the global database update settings on all SharePoint servers of the farm:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Updates node.
2. In the workspace, click the Updates on servers tab, select the required server in the table, and click the Propagate global settings button.

Notifications

Show all | Hide all

In the Notifications node, you can configure the sending of automatic notifications of the application operation by email.

The SMTP server settings section allows you to configure the SMTP server for sending email messages on behalf of the application.

Administrator address

Sender name

Use SMTP server settings on SharePoint

Use custom SMTP server settings

Send test message

In the Event notifications section, you can configure the delivery of notifications about events in the operation of the application.

The left part of the section displays the Notification subjects list. In this list, you can select events of which the application will notify recipients from the right part of the section, by email.

In the right part of the section, you can select recipients for each notification, edit the text of notifications, or define the advanced settings for notifications about events. The set of notification recipients may vary depending on the event selected in the Event notifications list in the left part of the section. Additional notification settings will also be available for defining.

In the Select recipients of notifications list, you can select one or several recipients to whom the application will send a notification about the selected event.

You can edit the text in this automatic notification by clicking the Template button on the right of each recipient. This feature is available for events that were logged by anti-virus scanning or content filtering.

On-access scan. Malicious objects

On-access scan. Unwanted content

On-deman scan. Malicious objects

On-demand scan. Unwanted content

Change databases status and condition

Reports on on-demand scan tasks

Inactive SharePoint servers

License-related events

About notifications

Notification is an email message that contains information about an event, which occurred on a protected SharePoint Server.

Kaspersky Security supports the delivery of notifications on the following events in the application:

• Detection of infected, password-protected, and corrupted objects, or unwanted content during an on-access scan
• Detection of infected, password-protected, and corrupted objects, or unwanted content during an on-demand scan
• Change of database status and condition
• Execution of an on-demand scan task and its results
• Detection of inactive SharePoint servers
• License-related events

Kaspersky Security sends event notifications by email. The application uses a SMTP server to send notifications. You can select an SMTP server used on SharePoint or specify a different SMTP server.

You can specify notification recipients for each event. By default, no notification recipients are specified.

You can edit the text in the automatic notification of events that are logged by anti-virus scanning and content filtering. When making templates for notifications about events related to on-access and on-demand scans, you can use the following variables:

Variables in notification templates

For other events (such as changes in the database status and condition, or license-related events), the notification text remains unchanged.

Notifications about license-related events

Kaspersky Security checks licenses of Security Server and the DLP Module after each database update. The application sends notifications about license-related events in the following cases:

• If the license expires soon

  The application sends the notification once per day (at 12:00 A.M. UTC) if both the active key and the additional key expire. By default, the application starts sending notifications 15 days before this event. You can change the term for sending the license expiration notification.

• If the license already expired

  The application sends the notification once per day (at 12:00 A.M. UTC) if the active key expired and no additional key is available.

• If the active key has been added to the black list of keys

  When updating anti-virus databases, the application checks the black list of keys for active keys. The application sends a notification if at least one active key has been found in the black list of keys.

Kaspersky Security sends special notifications about events related to Security Server and DLP Module licenses.

SMTP server configuration for delivery of notifications

To define the SMTP server settings for sending notifications:

1. In the Management Console tree, select the protected SharePoint server on which you want to configure the SMTP server.
2. In the node tree of this server, select the Notifications node.

   The workspace of this node displays the notification settings.

3. Configure the following settings in the SMTP server settings section:
   • Email addresses of SharePoint administrators.

     The application sends any notifications of application operation events to those addresses. You can configure notifications in the Notifications node.

     Use a semicolon to separate email addresses in the entry field.

     No addresses are specified by default.

   • Email address from which the application will send notifications of events in the application operation.

     By default, the application sends email messages from the email address, which is specified in the SMTP server settings on SharePoint.

4. Select the method of SMTP server configuration from the following options:
   • Use SMTP server settings on SharePoint.

     The application uses the settings of the SMTP server defined on SharePoint. If the settings of the SMTP server have not been defined on SharePoint, the application will not be able to send email messages.

     This is the default option.

   • Use custom SMTP server settings.

     The application uses the settings of the SMTP server that have been specified manually.

     If you select this option, the SMTP server address, Account, and Password fields become available. In this fields, you can specify the settings of the SMTP server that you intend to use for sending email messages.

5. If you need to test the operation of the SMTP server that has been configured manually, click the
   Send test message



   The program sends a test email message according to the current settings of the SMTP server.

   If the test message has been sent successfully, the application recommends checking the administrator's email. If the test message has not been sent, the application displays information about errors that occurred during the attempt to send the message.

   The button is active when the administrator's email address and the SMTP server address are specified.

   button.
6. Click the Save button in the upper part of the window.

The application saves the SMTP server settings for sending notifications.

Notification template

Show all | Hide all

In the Notification template window, you can edit the contents of the notification that the application will send to a specified recipient.

Subject

Message text

Default

Configuring notifications of events in the application operation

To configure automatic notifications of events in the application operation:

1. In the list of protected servers that have been added to Management Console, select the SharePoint server on which you need to configure notifications of events in the application operation.
2. In the node tree of this server, select the Notifications node.

   The workspace of this node displays the notification settings.

3. In the Event notifications section, configure notifications as follows:
   1. In the left part of the section, in the Notification subjects list, select an event of which the application will notify you by email.

      The right part of the section displays a list of recipients that can be sent notifications.

   2. Select the check box next to the recipients that will be automatically notified of this event by the application. You can specify the following recipients:
      • Administrator. Email address(es) of the administrators specified in the Event notifications section.
      • Author. Email address of the document author (user who uploaded the first version of this document to SharePoint). The author's email address is contained in the settings of the SharePoint server on which the document is stored.
      • User. Email address of a user associated with the event. The user's email address is contained in the settings of the SharePoint server on which the document is stored.
      • Additional addresses. Email address(es) specified in the entry field. Use a semicolon to separate email addresses in the entry field.
   3. If necessary, edit the notification text by clicking the Template button.
4. Click the Save button in the upper part of the window.

The settings of notifications about events in the application operation will be saved.

Changing the term of sending license expiration notifications

To change the term of sending license expiration notifications:

1. In the list of protected servers that have been added to Management Console, select the SharePoint server on which you need to configure license expiration notifications.
2. In the node tree of this server, select the Notifications node.

   The workspace of this node displays the notification settings.

3. In the left part of the Event notifications section, in the Notification subjects list, select License-related events.

   The right part of the section then displays the settings of license-related event notifications.

4. In the Notify about license expiry in spin box, specify how many days before the license expiration the application must start sending notifications.

   By default, the application sends the first notification 15 days before the license expires.

   Notifications are sent once per day (at 12:00 A.M. UTC).

5. Click the Save button in the upper part of the window.

The notification settings are saved. The application starts sending license expiration notifications on the specified day.

Reports

In the Reports node, you can create and view reports on the application's operation.

About reports

Kaspersky Security allows you to generate anti-virus protection, content filtering and operational reports. Reports allow you to analyze information about the protection status of a SharePoint server. Reports provide information on the number of clean and infected files and the number of files disinfected and removed.

Ready reports are displayed in the workspace of the Reports node, on the View and generate reportstab. You can view a report in the web browser window.

You can generate reports using one of the two following methods:

• Generate reports manually

  The application generates a report upon your request.

• Generate reports through a report task

  The application generates reports automatically according to the defined task settings. You can set up a report generation schedule or delivery of notifications about created reports by email. If necessary, you can run report generation tasks manually.

  The list of report generation tasks is displayed in the workspace of the Reports node on the Report creation tasks tab. Report generation tasks that were or could not be run at the scheduled time are highlighted red.

If a report generation task has not been executed, information about this event is displayed in the list of tasks, in the Status column:

• Deleted: <Server name>. Security Server of Kaspersky Security has been deleted from the SharePoint server specified in the report generation task settings. You can specify a different SharePoint server in the task settings.
• Task not executed. The SharePoint server specified in the report generation task settings was not available at the time scheduled for the start of the task. The availability of the server needs to be checked.

The Reports tab

Show all | Hide all

On the View and generate reports tab, you can create quick reports and view ready reports.

New report

View

Delete

Save

Report parameters

Show all | Hide all

In the Create report list, you can select the time period for which the application will create a report.

For 24 hours

For period

Generating reports manually

To generate a report manually:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Reports node.
2. In the workspace, on the Reports tab, click the New report button.

   This opens the Report settings window.

3. Select one of the following reporting periods:
   • For 24 hours. The application creates a report for the selected day.
   • For period. The application creates a report for the selected time period.
4. Click the OK button.

The report will be displayed in the list of generated reports in the View and generate reports section.

Report creation tasks tab

Show all | Hide all

The Report creation tasks tab displays a list of tasks for automatic generation of reports. In this section, you can add new tasks and configure their settings.

Create

Change

Delete

Start task

Task settings

Show all | Hide all

In the Task settings window, you can define the settings of the report generation task.

Task name

Run on schedule

Run task on server

The Schedule section allows setting up a schedule according to which the application will run the task.

Every N days

Weekly

Monthly

In the lower part of the window, you can select the recipients whom the application will send the ready report by email to.

Send to administrator

Send to recipients

Creating a report generation task

To create a new report generation task:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Reports node.
2. In the workspace of the Reports node, on the Report creation tasks tab, click the Create button.

   The Task settings window opens, which allows you to define the settings for the report creation task.

3. In the Task settings window, define the settings for the report creation task, then click OK.

   The task that you have created will be added to the list of tasks in the workspace. If necessary, you can edit the task settings.

Configuring a report generation task

To configure a report generation task:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Reports node.
2. In the workspace of the Reports node on the Report creation tasks tab, select the task whose settings you want to modify, and click the Change button.

   The Task settings dialog will appear.

3. In the Task settings window, define the following settings:
   • In the Task name field, edit the task name.
   • Select the Run on schedule check box if you want the application to generate the report upon a schedule, and select from the dropdown list the server on which the task will run. In the Schedule section, set up a schedule for the task run:
     • Every N days. The report will be created at the interval with the specified number of days, at the specified time. The report contains data for the last N days (by default, collected from 12:00 AM of the first day of the interval to 12:00 AM of the report generation day). You can change the report generation time in the Start time entry field.
     • Weekly. The report will be created at the defined time on the specified day of the week. The report contains data for the last 7 days (by default, from 12:00 AM of the first specified day of the week to 12:00 AM of the report generation day, for example, from Monday to Monday). You can change the report generation time in the Start time entry field.
     • Monthly. The report will be created at the defined time on the specified day of the month. The report contains data for the last month (by default, collected from 12:00 AM of the specified date of the previous month to 12:00 AM of the specified date of the report generation month). You can change the report generation time in the Start time entry field.

     The report generation schedule uses the time of the SharePoint server where the task is started.

   • If you want reports to be sent to the administrator's email address, select the Send to administrator check box.
   • If you want reports to be sent to other email addresses, select the Send to recipients check box and specify email addresses in the entry field. If several addresses are defined, use a semicolon as a delimiter.
4. To save the changes and close the window, click OK.

Starting a report creation task

To start a report generation task:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Reports node.
2. In the workspace of the Reports node, on the Report creation tasks tab, select the relevant report creation task from the list.
3. Click the Run task on server button.

Deleting a report generation task

To delete a report generation task:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Reports node.
2. In the workspace of the Reports node on the Report creation tasks tab, select in the list the task that you want to delete, and click the Delete button.

Viewing ready reports

To view a ready report:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Reports node.
2. On the Reports tab, select in the list the report that you want to view and click the View button.

   The report opens in the default browser.

   The report contains the following information:

   • Date and time of report generation.
   • Name of the SharePoint server for which the report has been generated.
   • Reporting period covered by the report.

   Report on operations with files. Information on the number of files processed by Kaspersky Security:

   • Files submitted for scanning during the reporting period. Files submitted for scanning during the reporting period.
   • Recognized as clean. Number of files recognized as clean after being scanned by application components to which they were referred for scanning.
   • Disinfected. Number of files that have been successfully disinfected by the application.
   • Deleted. Number of files that have been deleted after scanning.
   • Blocked. Number of files that have been blocked during on-access scanning.
   • Skipped (threat detection only). Number of files that have been skipped by the application after anti-virus scanning and content filtering according to the configured settings of on-demand and on-access scanning.
   • Not processed. Number of files that have not been scanned by at least one Kaspersky Security component.

   Report on status of server protection:

   • Files received for Anti-Virus scanning during the reporting period.
   • Status labels assigned by the application to files as a result of virus scanning:
     • Non-infected. Number of files that have been found to be free from threats during virus scanning.
     • Infected. The number of files with a code segment fully matching a code segment of a known application posing a threat.
     • Probably infected. The number of files whose code contains a modified segment of code of a known application posing a threat, or files resembling such application in the way it they behave.
     • Password protected. Number of password-protected archives.
     • Corrupted. Number of files that cannot be read by Kaspersky Security.

     Information about skipped files:

     • Excluded from scanning by the Administrator. Number of files that have been skipped according to the virus scan exclusion settings.
     • License issues. The number of files that have not be scanned due to license errors (such as a missing key).
     • Processing error. Number of files that have been skipped due to errors during virus scanning.

     Operations on malicious files:

     • Disinfected. Number of files disinfected after virus scanning.
     • Deleted. Number of files deleted after virus scanning.
     • Blocked. Number of files blocked after virus scanning.
     • Skipped (threat detection only). The number of files that, although found to contain a threat during an anti-virus scan, have been skipped because the Skip action had been specified in the scan settings.

   Content filtering report:

   • Files received for Content filtering during the specified time period.
   • Status labels assigned by the application to files as a result of content filtering:
     • Allowed. Number of files that have been found to be free from violations of content filtering policies.
     • Forbidden format. Number of times that the content filtering component detected prohibited file formats specified in the content filtering settings.
     • Forbidden mask. Number of times that the content filtering component detected file names that match masks specified in the content filtering settings.
     • Forbidden content. Number of times that the Content filtering component detected words or phrases included in Kaspersky Lab sections and user categories within the search scope configured in the Content filtering settings

     If one and the same file causes multiple detections by the content filtering component in a number of categories, each detection is recorded under the corresponding category.

     Information about skipped files:

     • Excluded from scanning by the Administrator. Number of files that have been skipped according to the content filtering exclusion settings.
     • Text extraction errors. Number of files whose contents have not been scanned by the application due to text extraction errors. Such errors may be caused by errors in the corresponding filter of IFilter Utility or a stopped Kaspersky Text Extracting Service.
     • License issues. The number of files whose content has not been scanned by the applications to due license violations, such as a missing or blacklisted key.
     • Text filter is not available. Number of files whose contents have not been scanned by the application because the corresponding filter of IFilter Utility is disabled or not installed.
     • Processing error. Number of files that have been skipped due to other errors occurring during content filtering.

     Actions taken by the application on files found to contain unwanted content.

     • Deleted. Number of files for which the action is set to Delete in content filtering settings.
     • Blocked. Number of files for which the action is set to Block in content filtering settings.
     • Skipped (threat detection only). Number of files for which the action is set to Skip in content filtering settings.

   SharePoint web objects scan report:

   • SharePoint web objects submitted for Content filtering during the reporting period.
   • Actions taken by the application on SharePoint web parts based on the results of content filtering:
     • Recognized as clean. Number of SharePoint web parts that have been found to be free from violations of content filtering policies.
     • Blocked. Number of SharePoint web parts that have been blocked based on the results of content filtering.
     • Skipped (threat detection only). The number of SharePoint web objects that, although found to contain unwanted content, have not been blocked because the Skip action has been specified for them in the scan settings.

     In on-demand scan mode, the application always skips web objects that contain unwanted content even if the Block action is configured in task settings.

   • Information on skipped SharePoint web objects:
     • License issues. The number of SharePoint web objects that have not be scanned due to license errors (such as a missing key).
     • Processing error. The number of SharePoint web objects that have been skipped due to errors occurring during content filtering.

Settings

Show all | Hide all

In the Settings node, you can define the general settings of the application.

The Use of Kaspersky Security Network section allows you to view the KSN Statement, enable the usage of KSN services, and define the protection settings of the SharePoint server.

KSN Participation Agreement

I have read the KSN Statement and accept all of the conditions therein

Use Kaspersky Security Network

Maximum waiting time when requesting KSN

Use proxy server to access KSN

The Data Leak Prevention section lets you configure the DLP Module settings that are used by the security officer.

Enable DLP Module

The Allow running search tasks on the following servers list contains the names of servers on which the DLP Module is installed. Servers selected in the list become available to the information security officer for starting scan tasks.

The Diagnostics section lets you configure the parameters of Kaspersky Security application event logs.

Logs folder

Default

Log storage period

In the Log details section, you can configure the detail level of logs. The following detail levels are available:

• Minimum. Kaspersky Security only logs main events, such as the start of an objects scan, start of an update, expiration of the license, as well as errors in the operation of the application components and errors occurred when updating the databases.
• Custom. Kaspersky Security logs main events, as well as detailed information about the events that have been selected in the Diagnostics settings window.
• Maximum. Kaspersky Security logs detailed information about all events in the application operation.

The current detail level set for logs is displayed in the Detail level field. The detail level depends on the number of events that have been selected in the Diagnostics settings window.

Settings

Reset

Record details of events to Content Filtering log

The Backup section allows you to define the Backup size and enable automatic purging of Backup.

Clear Backup automatically if its size exceeds

About participation in Kaspersky Security Network

To protect SharePoint servers more effectively, Kaspersky Security uses data that is collected from users around the globe. Kaspersky Security Network is designed to process such data.

Kaspersky Security Network (KSN) is an infrastructure of cloud services providing access to Kaspersky Lab's online knowledge base with information about the reputation of files, web resources, and software. The use of data from Kaspersky Security Network ensures faster responses by Kaspersky Lab applications to threats, improves the effectiveness of some protection components, and reduces the risk of false positives.

Your participation in Kaspersky Security Network helps Kaspersky Lab to gather real-time information about the types and sources of new threats, develop methods of neutralizing them, and reduce the number of false alarms. Participation in Kaspersky Security Network also lets you access reputation statistics for applications and websites.

When you participate in Kaspersky Security Network, certain statistics are collected while Kaspersky Security is running and are automatically sent to Kaspersky Lab. This information makes it possible to keep track of threats in real time. Also, additional checking at Kaspersky Lab may require sending files (or parts of files) that are imposed to an increased risk of being exploited by intruders to do harm to the user's computer or data.

Participation in Kaspersky Security Network is voluntary. To start using Kaspersky Security Network, you have to accept the terms of a special agreement – the Kaspersky Security Network Statement. You can also opt out of participating in Kaspersky Security Network at any time. No personal data of the user is collected, processed, or stored by the Kaspersky Security Network services. The types of data that Kaspersky Security sends to Kaspersky Security Network are also described in the Kaspersky Security Network Statement. You can use Kaspersky Security Network services if the application license has not yet expired and the key has not been blacklisted.

About logs

Details of the application operation are recorded into Kaspersky Security logs (hereinafter referred to as "logs") and into Microsoft Windows Event Log.

About Windows Event Log

Details of the application operation in Windows Event Log are recorded by Kaspersky Security services (see page ). For events related to the activities of Kaspersky Security, the Sourcecolumn indicates the name of the service that has detected those events. The names of all the services start from "KSH".

About event logs in Kaspersky Security

Details of the application operation in Kaspersky Security logs are recorded by the application's components and software modules. The application records information to the end of the most recent log. Records of new events are grouped at the top of the list. When the log reaches100 MB in size, the application archives it and creates a new one.

Event logs are created in TXT format and saved to the default folder <Application installation folder>/Logs. If necessary, you can track events across the log by their respective IDs.

You can define the following settings of Kaspersky Security logs:

• Log storage time;
• Log detail level;
• Location of the folder in which Kaspersky Security stores logs.

You can also enable the logging of event details for the Content Filtering log.

Data saved in a log may contain confidential information. For security reasons (for example, to prevent unauthorized access or possible data leaks), you are advised to personally protect files of the application log.

About the log of content filtering

The log of Content Filtering allows you to check if Content Filtering is configured properly.

The log of Content Filtering is located in the folder <Application installation folder>\logs\content_filtering\content_filtering_incidents_log_YYYYDDMM.csv, where YYYYDDMM stands for the log creation date.

The log of Content Filtering is created on a daily basis and contains the details of content filtering incidents for the relevant day. Logs for the previous days are stored in the folder <Application setup folder>\logs\content_filtering in archives with the corresponding names.

When a Content Filtering incident is triggered by the name or the content of a file, the following details are recorded in the log of Content Filtering:

• Incident ID
• Path to the file
• File name
• The word or phrase that caused the Content filtering incident
• The Kaspersky Lab section or user category to which the specific word belongs

The log of Content Filtering will additionally record a sequence of characters from the text that has been extracted from the file or the field of a SharePoint web object by the corresponding filter of Kaspersky IFilter Utility.

When a content filtering incident is caused by the content of a SharePoint web part, the following details are recorded in the log of content filtering incidents:

• Incident ID
• Path to the SharePoint web object
• Name of the field of the SharePoint web object in which unwanted content has been detected
• The word that caused the content filtering incident
• The Kaspersky Lab section or user category to which the specific word belongs

For a more detailed check of the operation of Content Filtering, you can enable the detailed logging of events to the log of Content Filtering. The log records a sequence of 10 words located in the text before the word that caused the Content filtering incident, the word itself, and 10 words located in the text after the word that caused the incident. If these 10 words contain more than 100 characters, the sequence is limited to 100 characters before and after the word that caused the Content filtering incident.

Data in the Content filtering log is not encrypted. For security reasons (for example, to prevent unauthorized access or possible data leaks), you are advised to personally protect files of the application log.

KSN Protection Settings

To configure the KSN protection settings:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Settings node.
2. In the Use of Kaspersky Security Network section, select the I have read the KSN Statement and accept all of the conditions therein check box if you accept all of the conditions of the Kaspersky Security Network Statement. You can view its text by clicking the KSN Participation Agreement button.
3. To use KSN cloud services for protection of SharePoint web objects, select the Use Kaspersky Security Network check box.

   Information received from Kaspersky Security Network services is used during anti-virus scans and scans of web objects for phishing threats.

4. Set the Maximum waiting time when requesting KSN. The default wait time for a response from the cloud is 10 seconds.
5. Select the Use proxy server to access KSN check box if you want to exchange information with KSN services using a proxy server.

   The way to configure the proxy server settings is described in the automatic database update configuration instructions.

6. Click the Save button.

Enabling and disabling Data Leak Prevention

The DLP (Data Leak Prevention) Module is a Kaspersky Security component designed to protect data against leaks. The component monitors file uploads by users to SharePoint in real time, checking the file contents for any confidential data. Settings of the DLP Module are configured by the Security Officer.

The Data Leak Prevention section is displayed in the Settings node if the DLP Module component has been installed on the SharePoint server. Data Leak Prevention is enabled by default.

Disabling the DLP Module can affect the workflow of the Security Officer.

To enable / disable data

leak protection:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Settings node.
2. In the Data Leak Prevention section, perform one of the following actions:
   • Select the Enable DLP Module check box if you want the application to monitor data leaks in real-time mode.
   • Clear the Enable DLP Module check box if you do not want the application to monitor data leaks in real-time mode.
3. If necessary, in the Allow running search tasks on the following servers list, select the check boxes next to servers on which the security officer will be able to run scan tasks to search SharePoint servers for confidential data.

   During a search task, the load on SharePoint servers increases.

4. To keep the changes, click the Save button in the upper part of the window.

Information about changes in the component operation is displayed in the Control Center node and in the root node of the Security Officer.

Configuring the path to the logs folder

To configure the path to the logs folder:

1. In the Management Console tree, select and open the node that corresponds to the relevant SharePoint server, then select the Settings node.
2. In the Diagnostics section, in the Logs folder entry field, specify the path to the logs folder.

   Do not use variables and masks when specifying the path to the folder. Do not specify an FTP server or a network folder as a location where the application logs are stored.

   The application will save logs using the specified path. If you configure the path to the folder on a server within a farm, the configuration will cover the entire server farm.

3. If necessary, click the Default link to restore the default path to the logs folder.
4. Click the Save button in the upper part of the window.

If the application does not save logs using the specified path, check the rights of access to that folder.

Configuring the log storage term

To configure the storage term for log files:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Settings node.
2. In the Diagnostics section, in the Log storage period field, specify a value for the log storage term (in days).

   The application will store logs during the specified number of days since the last record is added to the log. If no new records have been added to a log over the specified time period, the application deletes the log.

3. Click the Save button in the upper part of the window.

Configuring the detail level of event logs

To configure the detail level of event logs:

1. In the Management Console tree, select and open the node that corresponds to the relevant SharePoint server, then select the Settings node.
2. Click the Settings button in the Log details section.

   This opens the Diagnostics settings window.

3. Select events that must be recorded in detail.
4. Click OK to save the changes and close the window.

   If you have selected multiple events in the window, the detail level changes to Custom. The application will record main events in the application operation, as well as detailed information for the events that you have specified.

   If you have selected all of the events in the window, the detail level changes to Maximum. The application will record detailed information about all events to logs.

   When maintaining a log with the advanced detail level, this log contains web addresses that have been scanned for phishing.

5. If you want to reset the current detail level of a log, click the Reset button.

   The application changes the detail level to Minimum. Logs will only contain basic events from the application operation, such as scan results, updates of databases, and keys added.

6. If necessary, select the Record details of events to Content Filtering log check box.

   The application will record to the Content Filtering log a text fragment that is related to a content filtering event.

7. Click the Save button in the upper part of the window.

Diagnostics settings window

The Diagnostics settings window displays a list of events. In the Enable detailed logging of events list, you can select events in the application operation that the application will record to a log.

All boxes are cleared by default.

Failsafe support for SQL databases

Kaspersky Security supports the following failsafe technologies for SQL databases:

• Failover Clustering. Supported automatically.
• Database Mirroring. Supported automatically.
• Log Shipping. When the database used by the application (primary database) fails, the server hosting the restored database needs to be specified manually in order to switch to this database.

Using Database Mirroring technology

If your SQL server is configured to use the Database Mirroring failover support technology, the application automatically switches from the primary database that has failed to a mirror database, and then back to the primary database after it has been restored.

If the SQL server is running in High Performance Mode or High Safety Mode Without Automatic Failover for Database Mirroring, manual switchover to Database Mirroring is required by means of the SQL server if the main database used by Kaspersky Security fails.

Using Log Shipping technology

If your SQL server is configured to use the Log Shipping failover support technology, you can switch to using a restored database when the primary database fails. This switch is performed manually.

To switch to the restored database when using Log Shipping technology:

1. In the folder <Application installation folder>\Configuration, open the file BackendDatabaseConfiguration.config in a text editor.
2. Specify the name of the SQL server (indicating the SQL server instance) that hosts the failover partner in the line <SqlServerName>SQL server name\instance</SqlServerName>.
3. Save the file.

   The changes will take effect within one minute.

If Kaspersky Security is installed on a SharePoint farm, the corresponding changes to the file BackendDatabaseConfiguration.config need to be made on all SharePoint farm servers.

Licensing

Show all | Hide all

The Licensing node displays information about the license of Kaspersky Security. In this node, you can activate the application and renew your license.

If you have not performed the activation during the initial setup of the application, this node displays the Active key section. You can select a key file for the application activation by clicking the Add button.

The appearance of the Active key section changes if a key has been added. The section shows information about the key status, license type, license expiry date, the company's representative, and the number of users. This section allows replacing or removing the active key.

Replace

Delete

The Additional key section allows adding a key that entitles you to use the application but is not currently in use.

Add

The Active key of DLP Module section allows adding a key for activation of the DLP Module component. If a key has been added already, the section shows information about the key status, license type, license expiry date, the user's representative, and the number of users.

Add

Activating Security Server

Security Server activation lets you use the full functionality of Anti-Virus protection and Content filtering and update application databases.

To activate Security Server:

1. Open Management Console.
2. In the Management Console tree of nodes, select the Licensing node of the relevant server.
3. Click the Add button in the Active key section.
4. In the window that opens, specify the path to the key file (a file with the .key extension) and click the Open button.

The application adds the Security Server key corresponding to the license. The appearance of the Active key section changes. The section displays the following information:

• Key status. Details of the active Security Server key.
• Key. A unique alphanumeric sequence required to receive technical support from Kaspersky Lab.
• License type. Trial or commercial.
• Representative. Name of the representative of the company that executed the agreement to purchase the application.
• Number of users. The maximum number of employees with access to the SharePoint server protected by the application.
• Expiration date. The date when the Security Server license expires.

If you add a key on a server in a farm, the Active key on the servers of the farm table appears in the workspace of the Licensing node. The table contains a list of servers belonging to the farm and information about the status of keys on these servers.

If Kaspersky Security is installed on a standalone SharePoint server, the key status details are displayed in the Licensing section in the workspace of the Control Center (<Server name>) node.

Activating the DLP Module

DLP Module activation enables the security officer to use the full functionality of the DLP Module and manage Data Leak Prevention.

The DLP Module can be activated after activating Security Server. The DLP Module key validity period may not exceed the Security Server key validity period.

To activate the DLP Module:

1. Open Management Console.
2. In the Management Console tree of nodes, select the Licensing node of the relevant server.
3. In the Active key of DLP Module section, click the Add button.
4. In the window that opens, specify the path to the key file (a file with the .key extension) and click the Open button.

The application adds the DLP Module key corresponding to the license.

The appearance of the Active key of DLP Module section changes. The section displays the following information:

• Key status. Details of the active DLP Module key.
• Key. A unique alphanumeric sequence required to receive technical support from Kaspersky Lab.
• License type. Trial or commercial.
• Representative. Name of the representative of the company that executed the agreement to purchase the application.
• Number of users. The maximum number of company employees with access to management of Data Leak Prevention.
• Expiration date. DLP Module license expiration date.

Information on the DLP Module license is displayed in the Control Center node on all servers.

Application functionality is limited when the DLP Module license expires. The application stops scanning files in real time as they are uploaded to SharePoint, creating new incidents, and searching for data belonging to specific categories. The security officer can view information about previously created incidents, create categories, policies and reports. After the Security Server license has expired, the application stops updating DLP Module databases.

Replacing a key

You can replace an active key with a key that has a longer validity period or allows more users of Kaspersky Security (if any).

Replacing an active key does not interfere with on-access scans, on-demand scan tasks, or database updates.

To replace the active key for Kaspersky Security:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Licensing node.
2. Click the Replace button in the workspace.
3. In the displayed File name dialog specify path to the key file (file with the .key extension) and click Open.

To replace an additional key:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Licensing node.
2. In the workspace, click the Replace button in the Additional key section.
3. In the displayed File name dialog specify path to the key file (file with the .key extension) and click Open.

Removing a key

To remove a key for Kaspersky Security:

1. Select and open in the Management Console tree the node corresponding to the necessary SharePoint server. Then select the Licensing node.
2. In the workspace, click the Delete button in the Active key or Additional key section.

When Kaspersky Security is installed on a SharePoint farm and a key is removed from one SharePoint server within the farm, it is also removed from all servers of the SharePoint farm.

To security officer

This Help section is intended for professionals tasked with ensuring the security of confidential data, providing data leak prevention or preventing unauthorized access to data, and constantly monitoring the information security system and supporting its security hardware.

Information in this Help is arranged in accordance with the standard tasks that a data security officer performs using Kaspersky Security.

Kaspersky Security 9.0 for SharePoint Server

Kaspersky Security 9.0 for SharePoint Server (hereinafter "the application") is designed to protect the SharePoint platform against viruses and other malware and to scan the content of web resources for unwanted content, protect personal data of users and confidential data of companies on SharePoint websites against data leaks.

Kaspersky Security 9.0 for SharePoint Server offers the following capabilities for the Security Officer:

• Detect data leaks in real time
• Block files containing confidential data at the time when they are uploaded to a SharePoint server
• Assign priorities to data leaks according to corporate security requirements
• Configure permissions to upload files to SharePoint for individual employees and organizational units
• Use statuses to monitor the processing of registered data leaks
• Save and archive data leak records
• Determine the exact location of files with confidential data on SharePoint
• Automatically send data leak notifications to email addresses
• Automatically or manually generate application reports and send them to email addresses

About the system of role-based access in Kaspersky Security

Kaspersky Security supports the system of role-based user access for managing different functions of the application. User access to Kaspersky Security functions is granted depending on the user role.

Kaspersky Security supports the following roles:

• Administrator;
• Security officer

The Administrator role is intended for installing and administering Kaspersky Security. The administrator has access privileges for managing keys, configuring and upgrading the application, functions of anti-virus protection of SharePoint servers and web content scanning.

The administrator assigns roles for managing different application functions, performs installation and initial configuration of Kaspersky Security for the security officer. During initial configuration, the administrator:

• Adds the active key of the application
• Connects the SharePoint server to Administration Console of Kaspersky Security on the computer of the security officer
• Activates the DLP Module component of Kaspersky Security, which is intended for use by the security officer

Prior to using Kaspersky Security, make sure that the administrator has performed initial configuration of the application.

The Security Officer role is intended to ensure the required level of corporate security on SharePoint websites. The Security Officer has access rights for managing protection of data against leaks.

The Security Officer can perform the following operations in the application:

• Create and modify the criteria of confidential data recognition on SharePoint web resources
• Configure methods of data leak detection and application actions upon leak detection
• Configure data leak notifications to email addresses
• View details of data leaks
• Archive old data leak entries and recover them from the archive
• Configure the settings of the search for files with confidential data on SharePoint websites;
• Generate data leak reports for different periods and configure the delivery of reports to email addresses
• View finished data leak reports

About Data Leak Prevention

Kaspersky Security comprises the DLP (Data Leak Prevention) Module designed to protect data against leaks. The component monitors file uploads by users to SharePoint websites in real time and detects data leaks according to the following parameters:

• Type of data in the file and data contents;
• Name of the user transferring the file;
• SharePoint website to which the file is transferred.

You can configure these settings using application categories and policies.

If a user attempts to transfer a file containing confidential data (such as salary information of fellow employees) to a SharePoint website through which a leak may occur (such as a publicly accessible portal), the application registers this event as a data leak.

If national law requires notifying individuals that their network activity is being monitored, you must warn users about the operation of the DLP Module in advance.

You can configure the operations of Kaspersky Security as it registers data leaks. The application can perform the following operations automatically:

• Generate incidents (records documenting instances of corporate security violations)
• Assign priorities to incidents according to corporate security requirements
• Block file uploads to SharePoint
• Notify users and other officers about corporate security violations.

Information contained in incidents can be used to investigate corporate security violations.

Using categories. Assigning data to categories

The application uses categories to monitor data leakage and find information on SharePoint websites. Data categories contain criteria by which the application recognizes data on SharePoint websites, which are covered by the corporate security policy.

In this application usage scenario, you will learn how to categorize data and use categories in the operation of Kaspersky Security. You can begin using the application by analyzing the data that needs to be protected against leaks and assigning such data to different categories.

Data categories are required to classify information that you need to protect against leakage.

Data category. A set of data united with a common feature or subject and corresponding to specific criteria (e.g., a combination of words used in text in a certain order). The application uses data categories for recognizing information in files being uploaded and stored on SharePoint. The application allows using preset Kaspersky Lab data categories and creating custom data categories.

Kaspersky Lab categories. Predefined data categories developed by Kaspersky Lab specialists. Categories can be updated during application database updates. A security officer cannot modify or delete those predefined categories.

You can create data categories manually upon the following criteria:

• Quotations from documents. Text fragments from documents that must be protected against leakage.
• Document templates. Files with text data used as patterns for creation of new documents. The application protects against leakage all documents that have been created on the basis of those templates.
• Keywords. Word, phrase, or sequence of characters that the application uses for recognizing data in files being uploaded to and stored on SharePoint, which need to be protected against leakage. Keywords can be added to data categories.
• Table data. Information organized in a table format that must be protected against leakage. Table data is processed in Kaspersky Security using CSV (Comma Separated Values) files.

Scenario of data distribution by categories

1. Prepare the documents that you need to protect against leakage and distribute them by groups in accordance with general criteria (for example, accounting records, personal data, or information about new technologies).
2. In accordance with those general criteria, distribute data by categories:
   • To recognize text fragments precisely, use categories with quotations from documents. You manually add to a category documents from which quotations need to be tracked. The application recognizes quotation from documents by comparing data in the category against data uploaded to and stored on SharePoint.
   • To recognize full text from documents, use categories with document templates. You manually add to a category files with text data that need to be tracked.
   • To recognize text information (such as details of the organization's technologies and workflows), use keyword categories. You add keywords to the category manually. The application recognizes the data by keywords or expressions, selecting them from multiple keywords that have been specified in the category settings.
   • To recognize information stored in tables (such as personal records of employees or information about their wages), use table data categories. You add table data to the category manually. The application recognizes the data by the number of matches with table cells that has been specified in the category settings.
   • Use preset Kaspersky Lab categories to recognize data belonging to the most common categories (such as medical records, personal data, and bank details).

You can use categories to monitor and prevent data leaks and to search SharePoint websites for data.

About Kaspersky Lab data categories

Kaspersky Lab categories are preset categories that have been developed by Kaspersky Lab specialists. Each category includes data subcategories (that is, more specific categories).

Subcategory is a nested, embedded data category included in a larger-scale category. Each subcategory describes a set of category data combined with a specific feature. For example, the "Magnetic stripe data" subcategory makes part of the "Banking cards" category.

You can change the contents of a category by excluding or including subcategories. When a Kaspersky Lab data category is used, the application considers the data subcategories selected as part of this category. Subcategories that have been excluded from the category are ignored. For example, you can exclude subcategories upon which the application generates false positive incidents.

Kaspersky Lab categories are provided as part of the Kaspersky Security distribution kit. Categories can be updated during application database updates. The application records information about new Kaspersky Lab categories received during the update in the Windows Event Log. To receive information about preset Kaspersky Lab categories that have been added or modified, you can enable automatic notifications. Notifications contain information about the number of new and modified categories with their descriptions.

Kaspersky Lab categories

Page top

Monitoring and preventing data leaks

Kaspersky Security allows you to track and prevent data leakage on SharePoint websites by means of policies.

Policy is a collection of application settings that provide data protection against leakage. The policy defines the conditions on which users can handle confidential data, as well as actions that must be taken by the application when possible data leakage is detected.

According to the policy, the application scans files uploaded to SharePoint, using the following settings:

• By the name of the user account under which the file is uploaded
• By the address of the SharePoint website to which the file is uploaded
• By the match between data in the uploaded file and data in the category

If the conditions set for file upload to SharePoint meet the settings defined in the policy, the application registers a policy violation.

A policy violation means user actions leading to a violation of the conditions applied to the handling of confidential data on SharePoint servers. The application views an event as a policy violation if the user specified in the policy uploads to a SharePoint website some data from a category prohibited by the policy.

You can set up actions that the application will take in case of a policy violation, in accordance with one of the following scenarios:

• If you want to prevent leakage of data protected by the policy, we recommend that you configure the policy so that Kaspersky Security blocks files from being uploaded by users to SharePoint websites. This option is recommended if leakage of protected data poses a threat for data security in the organization.

  You can additionally set up notification delivery to email addresses in order to receive up-to-date information about policy violations

• If you want to track possible leakage of data protected by the policy, we recommend that you configure the policy so that Kaspersky Security does not block files from being uploaded to SharePoint websites. The application will not affect user activities on SharePoint servers. This option is recommended if information about policy violations is analyzed during incident management.

Policy adding scenario

Before adding a policy, we recommend that you create relevant data categories or select relevant data categories in the list of preset categories.

1. In the list of categories and policies, select the category, which contains data that you need to protect.
2. Create a new policy for the selected data category.

   Multiple policies can be added for a single category.

The application will track and / or prevent data leakage if the policy is active.

Categories and policies

Show all | Hide all

In this node, you can configure protection of data against leakage.

The node's workspace displays a list of categories and policies configured to protect data against leakage.

Kaspersky Lab categories are marked with the symbol. User-added categories are marked with this icon .

Clicking the button located on the left from the name of a category opens a list of policies set for that category. Policies are marked with icons that reflect their status:

• – the policy is active; when the policy is violated, the application blocks file transmission to SharePoint.
• – the policy is active; when the policy is violated, the application does not block file transmission to SharePoint.
• – the policy is inactive.

Clicking the name of a category or a policy in the right part of the section displays detailed information about the category or policy that has been selected.

New category

New policy

Settings

Delete

The Policies search section allows searching for policies associated with specific users.

On users without Active Directory accounts

On selected users

Find

Settings of a category of table data

Show all | Hide all

In the Category settings window, you can configure the conditions for data search across SharePoint using table data.

Name

Path to file

Browse
