Connecting to the network and configuring network settings

To connect a device to an external and internal network, you must establish physical connections (using an RJ45 cable) and configure the external and internal network settings if necessary.

Physical connection to the network

To connect Kaspersky IoT Secure Gateway 100 to a data transfer network:

1. Connect the network cable of the internal network (where the OPC UA server resides) to the PN/IE LAN X2 P1 port of the device.

   Specification defining the protocols and mechanism for data transfer in industrial networks as well as interaction between devices in these networks.

2. Connect the network cable of the external network (where the MQTT broker resides) to the PN/IE LAN X1 P1 port of the device.

   A server that receives, filters, and forwards messages over the MQTT protocol.

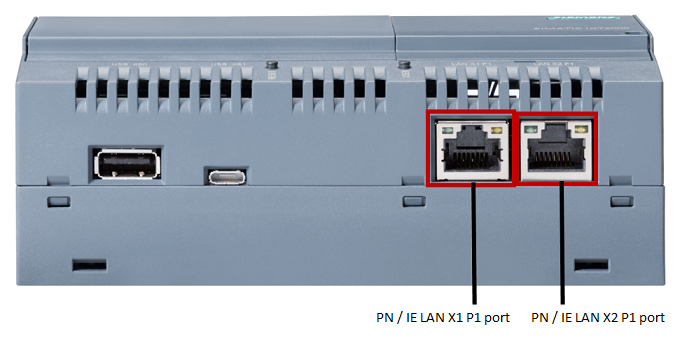

   Layout of Ethernet ports on the Siemens SIMATIC IOT2040 device

Automatically obtaining network settings

By default, Kaspersky IoT Secure Gateway 100 is delivered with a dynamic (DHCP) configuration for the internal and external network. To automatically receive network settings in this configuration, there must be a configured DHCP server residing in the same network.

If there is no DHCP server or if you do not want to use dynamic configuration of the network, use a static configuration of the network.

Configuring static network settings

To configure static settings for the external and internal network:

1. Create two separate configuration files named dhcpcd.conf on the microSD card:
   • One for the external network in the directory /etc on the HW-ENW partition;
   • One for the internal network in the directory /etc on the HW-INW partition.
2. In the dhcpcd.conf files, define the network settings according to the dhcpd documentation.

   Sample configuration file defining the settings for an external or internal network:

   static ip_address=192.168.1.177/23

   static routers=192.168.1.1

3. Save the changes.
